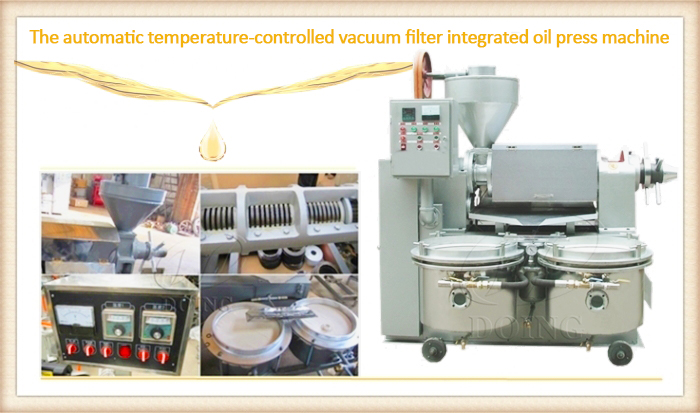

Edible oil is an essential ingredient in our daily lives. and the production of edible oil requires different types of edible oil extraction machines. Among them, the automatic temperature-controlled vacuum filter integrated oil press machine, also known as the edible oil extraction machine with a filter, is one of the most popular machines on the market.

The price of edible oil extraction machine with a filter

The price of edible oil extraction machine with a filter ranges from 4000-10000. Multiple model options are available to suit different customer needs and budgets. The power and processing capacity of each model varies, resulting in different prices. Therefore, you can select the most suitable model based on your needs and budget. If you want to learn more detailed information about the edible oil extraction machine with a filter cartridge for edible oil, you can contact Henan Glory Company. Our professional sales staff will serve you and help you select the most suitable equipment according to your needs.

Model	Machine photo	Input capacity (tons/24-hour)	Oil residual rate of cake(％)	Revolving speed of pressing screw(r/min)	Power (kw)	Overall dimensions(mm) Height*Width*Depth	Weight (kg)	Temperature controlled power(kw)	Filter oil power(kw)
YZYX70WZ		≥1.3	≤7.8	35～45	4	1500x1100x1620	500	1.5	0.55
YZYX90WZ		≥3	≤7.8	32～40	5.5	1310x1180x1410	560	2.4	0.55
YZYX10WZ		≥3.5	≤7.8	32～40	7.5	1718x1450x1735	973	2.65	1.1
YZYX108WZ		≥4.5	≤7.8	32～40	11	1818x1450x1735	1042	2.65	1.1
YZYX120WZ		≥6.5	≤7.6	32～42	15	2120x1350x1890	1080	3.6	1.1
YZYX130WZ		8~10	≤7.6	30-40	18.5	2005×1610×2010	1280	3.6	1.5
YZYX140WZ		9~11	≤7.6	30-44	22	2005×1610×2010	1400	3.6	2.2

The edible oil extraction machine with a filter is designed to make the production of edible oil more efficient and convenient. It has a processing capacity of 1-10tpd and is mainly suitable for small and medium-sized edible oil processing plants. The edible oil extraction machine with a filter is equipped with a powerful motor to ensure efficient and effective oil pressing. It consists of three main parts: the temperature control system, the oil pressing part, and the filtering part.

The temperature control system

The temperature control system is an important component of the edible oil extraction machine with a filter. It uses an electric heating ring device to heat the press, which has an automatic temperature control function, replacing the traditional friction heating method of the press. This shortens the preheating time, makes the press function quickly and normally, reduces energy consumption and machine wear. The temperature control system ensures that the edible oil extraction machine with a filter is heated to the specified temperature before the oil is transferred from the hopper to the pressing chamber. At the same time, the temperature control system of the edible oil extraction machine with a filter is easy to operate, with a user-friendly interface that allows operators to easily control temperature and other settings. The edible oil extraction machine with a filter is also equipped with safety features to ensure the operator’s safety when using the machine.

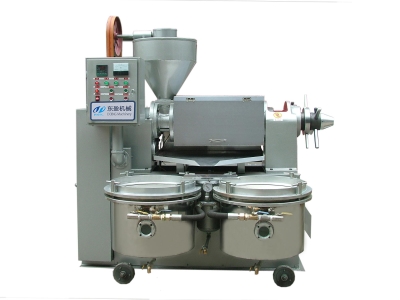

Edible oil extraction machine photo

The oil pressing part

The oil pressing part is the heart of the edible oil extraction machine with a filter. Under the action of the pressing screw, the oil is continuously pushed inward. Our pressing screw adopts 20 carbon steel to ensure efficient and effective oil extraction. Moreover, our pressing screws are polished before leaving the factory to ensure smoothness and prevent blockage caused by rough pressing screws, to a certain extent, ensuring the smoothness and efficiency of machine operation. The oil pressing part is designed to process various oilseeds, including soybeans, peanuts, sunflower seeds, rapeseed, cottonseed, etc.

The filtering part

The filtering part of the edible oil extraction machine with a filter is responsible for filtering the pressed edible oil. The oil is filtered through the filter to remove residues and obtain pure edible oil. The oil also does not contain impurities, and its shelf life is longer. The filtering part is also equipped with a vacuum pump, which helps to filter the crude oil more effectively.

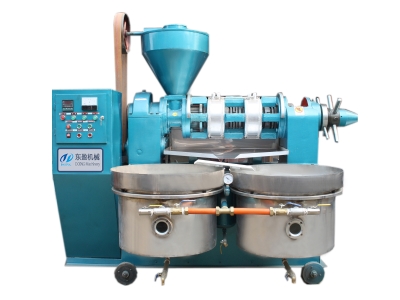

Edible oil extraction machine photo

Compared with other edible oil extraction machines, the edible oil extraction machine with a filter has the advantages of high oil yield, easy operation, high oil quality, and low energy consumption. In addition to the edible oil extraction machine with a filter, there are also hydraulic edible oil extraction machines, screw oil press machines, and manual oil press machines on the market. These machines have their own advantages and disadvantages, and the choice of machine depends on the specific needs of the user. For more information about edible oil extraction machines, please contact Henan Glory Company.
