Introduction of palm oil fractionation plant:
Palm oil fractionation plant uses mechanical separation of liquid oil from solid fractions of certain oil and fats. Palm oil fractionation plant can greatly maximize the value of products.
palm oil fractionation plant

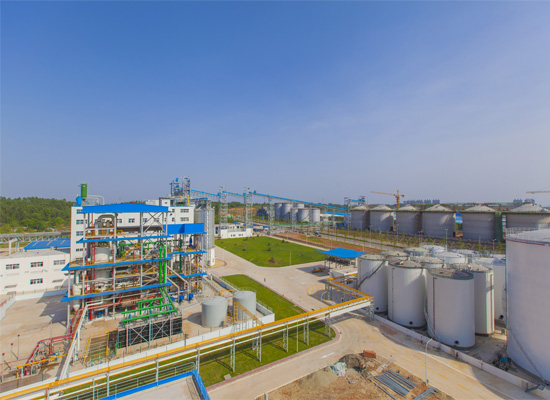

Palm oil refinery&fractionation factory


Principle of palm oil fractionation plant:
Dry type palm oil fractionation plant is the most economical fractionation without adding any solvent. The oil in dissolved state is cooled slowly to a certain degree, passing through filtration to separate crystals and precipitate solid ester.
Palm oil fractionation plant includes three steps below:
Process Description of palm oil fractionation plant:
Dry Fractionation is a process to separate vegetable oils such as palm oil into two fractions, Olein and Stearin, by the crystallization properties of the oils. A typical dry type palm oil fractionation plant consists of Crystallization Section and Filtration Section.
Crystallization Section of palm oil fractionation plant
Preheated RBD palm oil is fed into the LIPICO crystallizers and then cooled in a controlled environment to form crystals. The cooling sequence follows a defined program using PLC or programmable controllers. The slurry of crystals and oil is then pumped to the fractionation filter for separation of the solid crystals from the oil.


palm oil fractionation plant

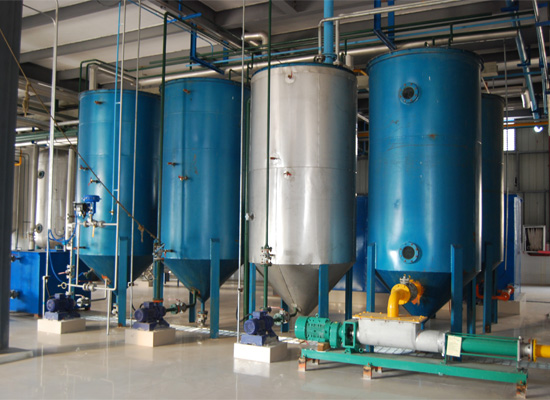

Crystal tank of palm oil fractionation plant


Filtration Section of palm oil fractionation plant:
In the filtration section, an automated membrane filter press is usually used for filtration of oil slurry to separate the stearin crystals from the liquid olein. Stearin is retained as filter cake while olein passes through the filter as filtrate. Olein yield is maximized by squeezing the stearin cake through inflation of the membrane with air or liquid.
palm oil fractionation plant

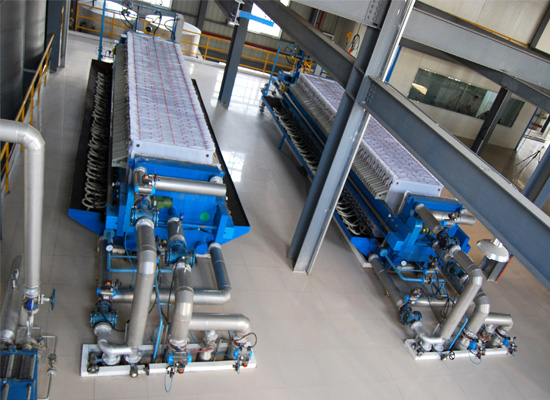

Filteration of palm oil fractionation plant


Dry type palm oil fractionation plant has a wide prospect, because of its simple technology, high automaticity, low steam consumption, good quality of product, without centrifugal separation, solvent or effluent.Above is a brief introduction about palm oil fractionation plant by Henan Doing Mechanical Equipment Co., Ltd. If you still have any questions about palm oil fractionation plant, please contact us.
