New generation palm oil processing machine

New generation palm oil processing machine

Support to visit cooking oil processing machine factory, supply turn-key projects, provide customized services

Contact us:
palm oil processing machine
New type palm oil processing machine

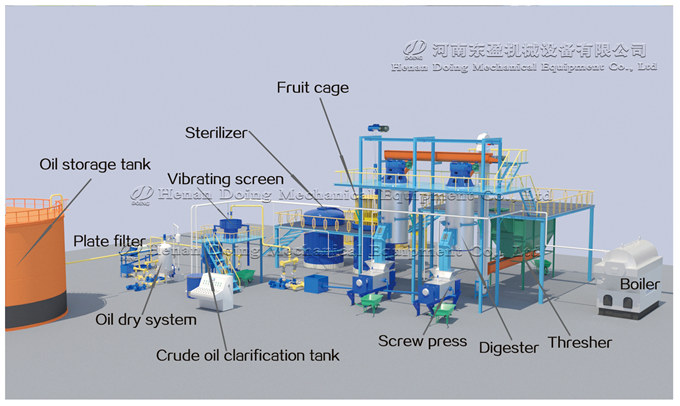

This new generation palm oil processing machine apply steam sterilizer to process the palm fruit, and in the clearification section, this new generation palm oil processing machine combine the vibrating scree, the sand clarificaiton tank and plate filter to clarify the crude palm oil, besides, this palm oil processingmachine apply the oil drying system to remove the moisture in oil.All the above palm oil processing machine helps to get effiency sterilizer effect, high oil yield, low residue in oil and higher oil quality, which is easier for storage and sell.
palm oil processing machine
Palm oil processing machine
The working process of palm oil processing machine:
FFB(Palm fruit bunches)--Sterilizing--Threshing--Digesting--Pressing--Clarifying--Filtering--Drying--Crude palm oil

Difference between old palm oil processing machine and new generation palm oil processing machine:



Old type palm oil processing machine

New type palm oil processing machine

Capacity

1-2-3-5tph

1-2-3-4-5tph

Sterilizing way

Use hot water boil bunches

Use boiler to provide steam or use hot water to boil bunches

Digesting part

Horizontal digester

Vertical digester

Pressing

Double screw press machine

New type palm oil press machine

Clarifying part

Clarifying tank and filter

Use vibrate screen, clarifying tank, filter, vacuum dryer

Hot water tank

No

Pressing and vibrate screen needs hot water to increase palm oil mobility, make machine running smoothly.

Final product state(Crude palm oil)

Ropy semi-liquid with some impurities

Clear liquid without impurities

Oil tank

Without oil storage tank

With big oil storage tank

Technology

Simple and easy

Same with big scale palm oil mill more than 30tph

Efficiency

Low

High efficiency and high oil yield


New generation palm oil processing machine introduction:

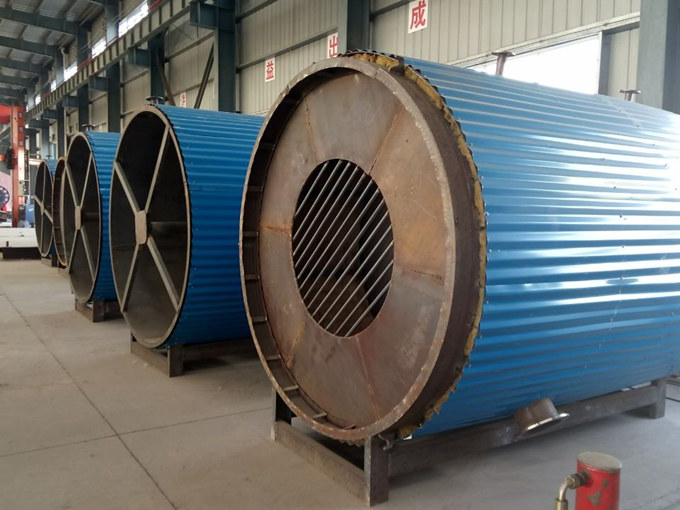

Palm fruit sterilizer——Put palm fuit bunches into fruit cages, then use electric crane to lift cages to sterilizer of palm oil processing machine, we use boiler to produce steam which can be gone into sterilizer.
palm fruit sterilizer
Palm fruit sterilizer

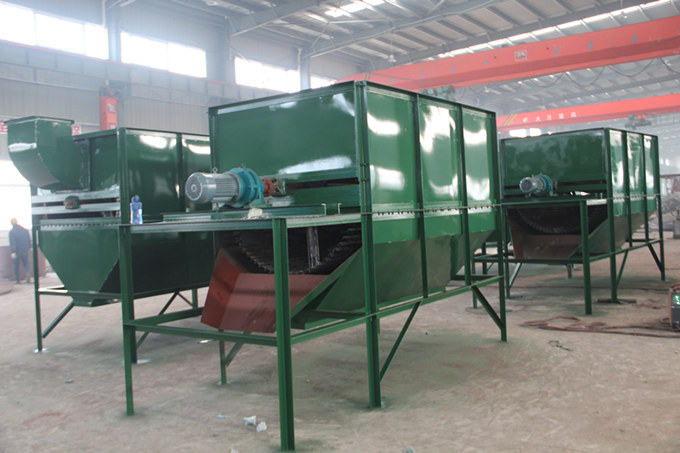

Palm fruit thresher——Move palm fruit bunches to thresher of palm oil processing machine for separating palm fruit from bunches.
palm fruit thresher
Palm fruit thrsher

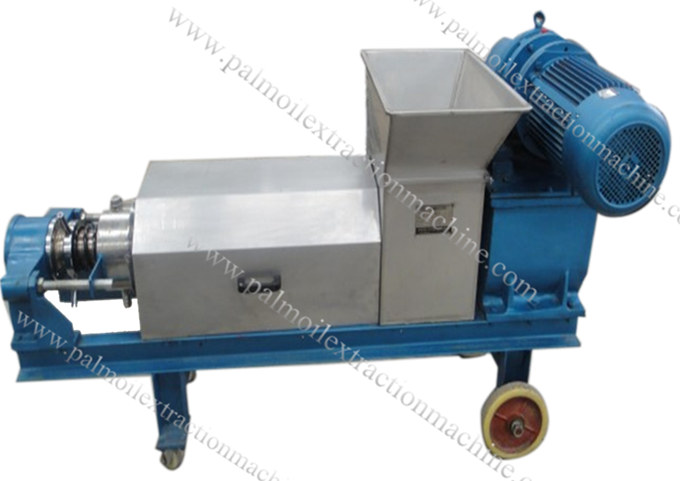

Palm fruit presser——Put palm fruit into digester and presser of palm oil processing machine for crash palm pulp and press them to get palm oil. Besides that, you can also get the mixture with palm nut and fiber in this step.
palm fruit presser
Palm fruit presser

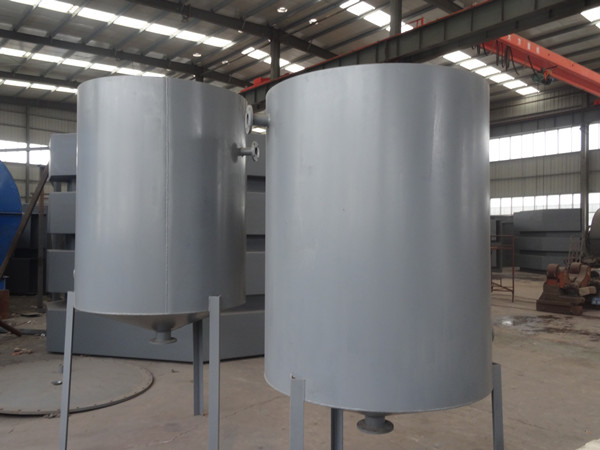

Palm oil clarification——Combine the vibrating scree, the sand clarificaiton tank and plate filter to clarify the crude palm oil.
palm oil processing machine
Palm oil processing machine

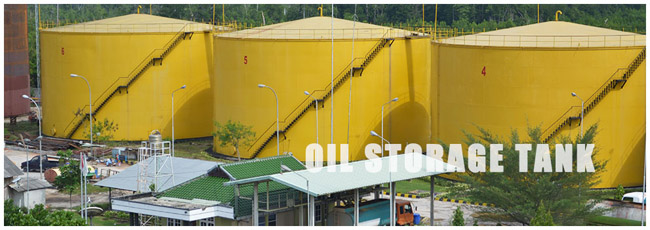

Palm oil storage——The final clean red palm oil can be stored in the palm oil storage tank.
palm oil storage tank
Palm oil storage tank
Others:The mixture with palm nut and fiber need be dried under sunshine or other ways, then separate them, you can sell palm nut to others, also can process them into palm kernel oil using our palm kernel oil extraction machine.
