Palm kernel recovery station

Palm kernel recovery station

The palm kernel recovery station assures high efficiency recovery process of palm kernel after palm oil pressing processing line. The palm kernel recovery station prepares for further step palm kernel oil pressing process after splitter and crushing.T

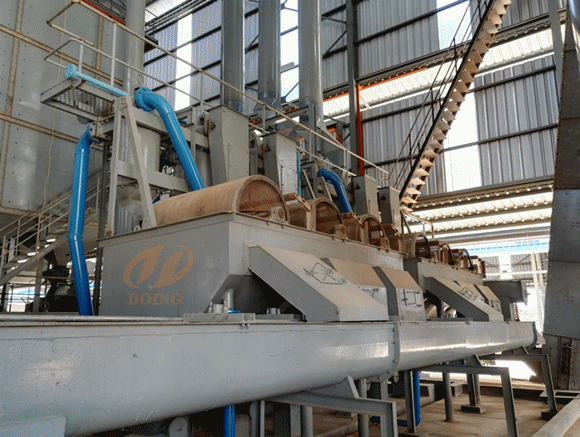

palm kernel recovery station
Palm kernel recovery station

The palm kernel recovery station assures high efficiency recovery process of palm kernel after palm oil pressing processing line. The palm kernel recovery station prepares for further step palm kernel oil pressing process after splitter and crushing.The palm kernel recovery station mainly include Fiber & Nuts Separation Station, Nut&Kernel Separation Station, Palm Kernel Storage Station.

palm kernel receovery station
Fiber & nuts separation station

Fiber & Nuts Separation Station:
Fiber & nuts separation station belongs to palm kernel recovery station .Firstly, the wet fiber and wet nut enter the palm nut fiber separator machine to be separated, and mostly of the fiber should be separated by palm nut fiber separator machine. The nut, little fiber and big impurity will be further processed by the Nut & Kernel Separation Station.

palm kernel recovery station

Nut & kernel separation station

Nut & Kernel Separation Station:
After fiber & nuts separation station, the separated nut should be sent to nut hopper through the pneumatic nut transport system, and then adopt the ripple mill to crack the nut, after cracking , most of the shell and kernel will be separated by cracked mixture separating system, and the rest of mixture of kernel & shell enter to the special clay bath separating system to separate them, after this processing , we could get pure kernel(The shell content in kernel <6%).


palm kernel recovery station
Palm kernel storage station


Palm Kernel Storage Station:
Palm kernel storage station is the finally step in palm kernel receovery station.The separated palm kernel should be conveyed to the kernel silo to dry. After dried moisture as 7%, the kernel will be conveyed to kernel storage bin for storage; Usually the dry kernel’s capacity ratio is 4% . So it should be collected until enough quantity, and then be sent to the palm kernel oil mill; For the separated shell, it should be conveyed to shell temporary bin as the spare boiler fuel.
