For businesses seeking to establish a 50TPD soybean vegetable oil solvent extraction plant, selecting the right soybean vegetable oil solvent extraction equipment is critical to achieving efficiency, high yields and cost-effectiveness. Taking Henan Glory Company (a company specializing in designing and providing comprehensive solvent extraction systems that meet such production capacity needs) as an example, the following is an overview of the key equipment of its 50TPD soybean vegetable oil solvent extraction equipment.

1. Rotocel Extractor

The rotocel extractor is the heart of the soybean vegetable oil solvent extraction process. It uses n-hexane or other solvents to dissolve oil from pre-pressed soybean cakes, achieving high oil extraction rates (typically >95%). The features of rotocel extractor:

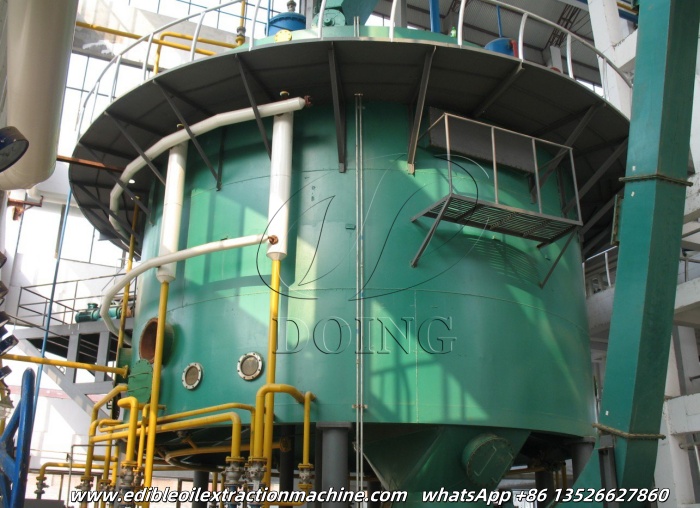

The rotocel extractor

(1) Automatic Grade: Fully automated for precise solvent-to-cake ratios.

(2) Capacity: Designed for 50TPD continuous operation.

(3) Low Residual Oil: Ensures soybean cake residual oil content <1%, maximizing yield.

In addition to the rotocel extractor, if your daily processing capacity can reach hundreds of tons or more, Henan Glory can also provide you with suitable loop type extractors and ballyuan solvent extractors for your choice.

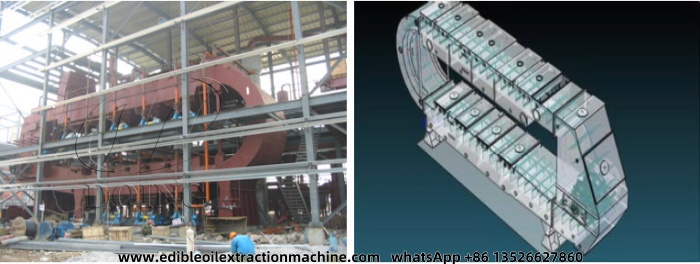

The loop type extractor

2. Desolventizer Toaster (D.T.D.C System)

The D.T.D.C System separates solvent from wet meal through indirect steam heating, reducing solvent loss and improving meal quality. Key features of D.T.D.C System:

(1) Energy Efficiency: Minimizes steam consumption while ensuring thorough desolventization.

(2) Meal Quality: Produces high-protein meal suitable for animal feed.

(3) Safety: Equipped with explosion-proof designs for safe operation.

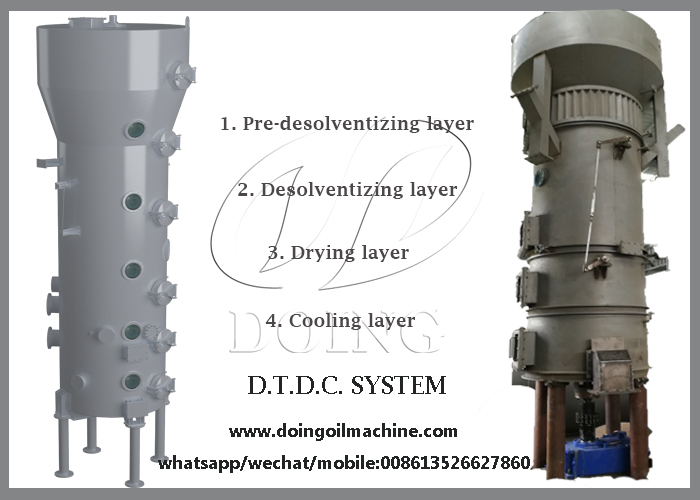

The D.T.D.C System

3. Evaporation Stripping System

The evaporation stripping system removes solid grains from the mixed oil and separates the solvent at high temperature, thereby obtaining relatively pure crude soybean oil. The separation of the solvent generally goes through two stages:

(1) Evaporation Stage: Use indirect steam to heat the mixed oil to remove the solvent in the form of boiling and evaporation;

(2) Stripping Stage: Use direct steam to fully vaporize the solvent to achieve the purpose of removing the solvent.

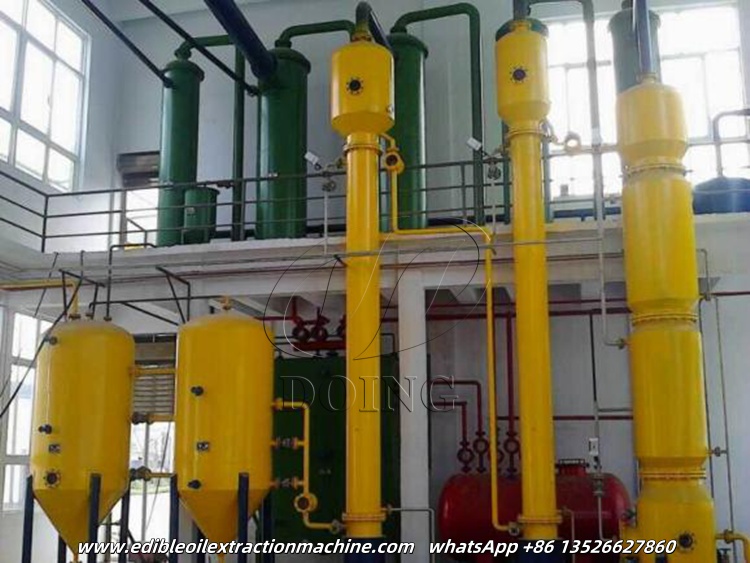

The evaporation stripping system

4. Condenser and Solvent Recovery System

To minimize environmental impact and operational expenses, Henan Glory Company' s 50TPD soybean vegetable oil solvent extraction plant includes:

(1) Condensers: Cool and liquefy solvent vapor for reuse.

(2) Exhaust Gas Recovery System: Captures and recycles solvent from vent gases, ensuring compliance with emissions standards.

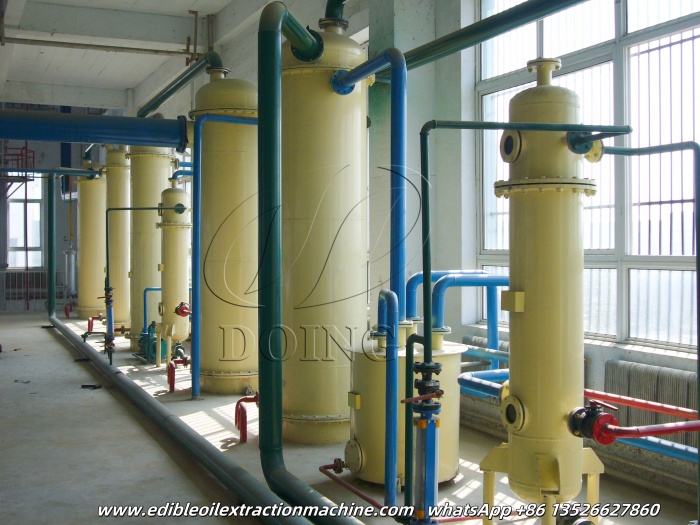

The condenser and solvent recovery system

5. Automated Control and Monitoring System

(1) PLC-Based Automation: Real-time monitoring of temperature, pressure, and solvent flow.

(2) Energy Management: Optimizes steam and power consumption.

(3) Safety Alarms: Detects leaks or abnormal conditions for immediate response.

In conclusion, Henan Glory's 50TPD soybean vegetable oil solvent extraction plant combines cutting-edge technology with robust engineering design to achieve high oil recovery and low operating costs. We can customize the soybean vegetable oil solvent extraction equipment according to your specific needs to ensure seamless integration with existing infrastructure. If you are interested in this, please feel free to consult us!
