Palm oil mill technical drawings can show you the processing steps of palm oil, what machines will be used in palm oil production process, and how to put your palm il processing machines in your workshop reasonably. Normally the palm oil mill technical drawings consists of palm oil mill process flow diagram, palm oil mill plant layout and civil engineering condition drawing.
Palm oil mill process flow diagram
Palm oil mill process flow diagram is a diagram commonly used in palm oil mill projects to indicate the general flow of plant processes and equipment. The palm oil mill process flow diagram displays the relationship between major equipment of a plant facility.

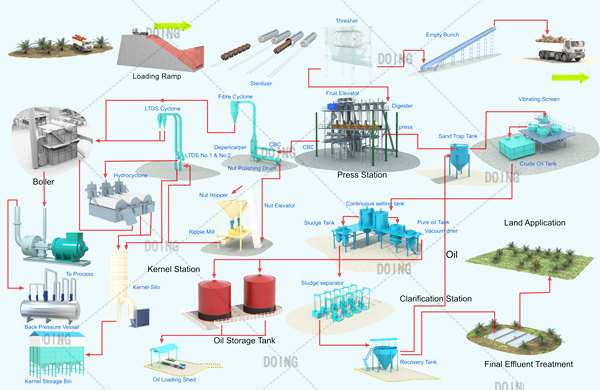

A process flow diagram of large scale palm oil mill plant is shown as below.
Large scale palm oil mill process flow diagram
Palm oil mill plant layout is the designing of how to put your palm il processing machines in your workshop reasonably.
Due to the size of different customers' workshop are different, our engineer need to make appropriate palm oil mill plant layout depending on each customer's workshop. So the customers need to supply their workshop size or land size to us in advance.

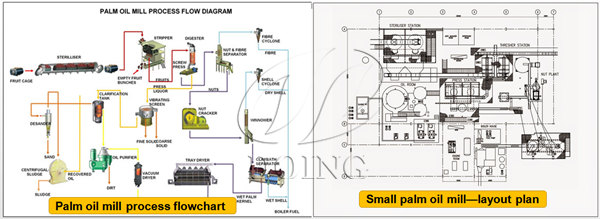

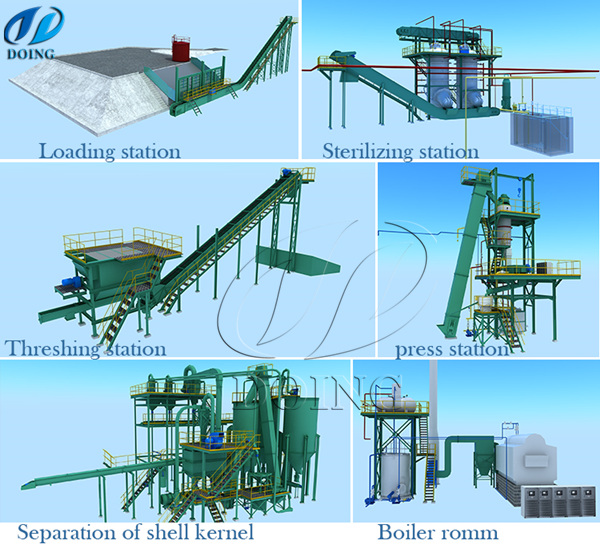

Palm oil mill proces flowchart and palm oil mill layout
Civil engineering condition drawing is the guidance of building workshop. Our engineer will make it for you before you build the workshop. it can let you know how many size our machines demand. After you get civil engineering condition drawing, you just need to look for the local building company to built your palm oil mill.
It is worth remembering that we only can tell you how many tons and size of our machine, and how many load-bearing they need, but we can't tell you how many hole you need to make, because we don't know your local geological conditions.
All of the palm oil mill technical drawings need our engineers take plenty time to make it done. But if you establish cooperation with Henan Doing Company and choose to buy palm oil processing machine from our company. We will be pleased to do it for you.
