Palm oil mill process machinery

Palm oil mill process machinery

Palm oil mill process is quite diffferent from other oil seeds processing, such as the soybean, peanut,sunflower etc. Palm oil mill process machinery is a complicated project which include a series of processes.

palm oil mill process machinery
Palm oil mill process machinery


Palm oil mill process is quite diffferent from other oil seeds processing, such as the soybean, peanut,sunflower etc. Palm oil mill process machinery is a complicated project which include a series of processes.Palm fruits consists a lot of fatty acid enzyme, which would hydrolyze palm oil. That's the reason why palm fruit must be sent into processing in 24 hours.

Palm oil mill process includes 6 parts: Palm bunches receiving, sterilizer, threshing, mashing and pressing, crude oil clarifying and palm kernel recovery.

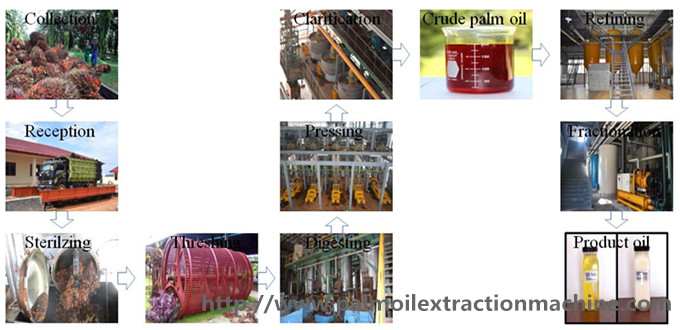

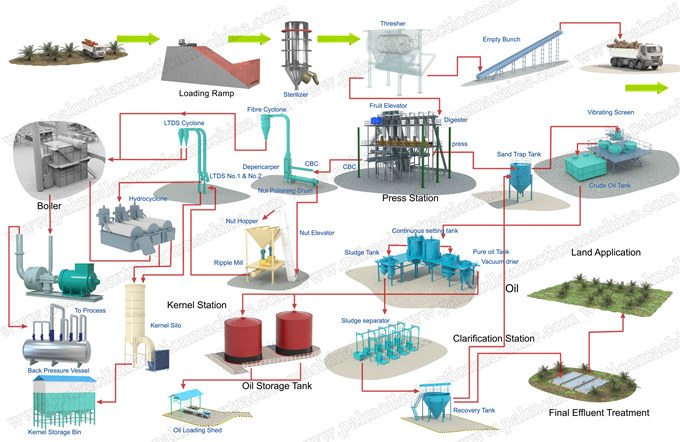

Palm oil mill process flow chart:
palm oil mill process
Palm oil mill process



Main process of palm oil mill plant :
1. Palm fruits receiving:
Palm fruit receiving station is the begin of palm oil mill process.Collecting the ripe fresh cluster from the orchard and convey by trucks, then pour the fluster into the discharge door after weighed by ground weigher . The discharge door has discharging channels, the upper and lower switches of the iron gate are controlled by pneumatic, Pneumatic control system consists of air compressor and pneumatic control devices. Start the control valve to open the gate of the discharge door, then the palm fruits will fall into the fruit basket car or conveyor.

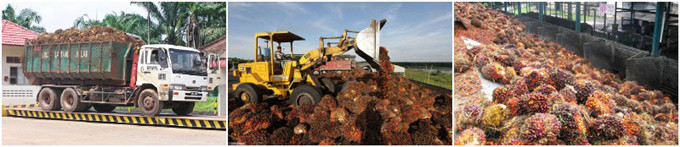

palm oil mill plant
Palm fruit receiving machine

2. Palm fruit sterilizer:
The palm oil mill process machinery we use in this section is sterilizer. Fresh palm fruit bunch are airtight sterilized in sterilizer, injecting direct steam (the pressure is 300KPa) to heat 60mins. The purpose is to prevent enzymes broken down, avoiding FFA content in oil further increase.

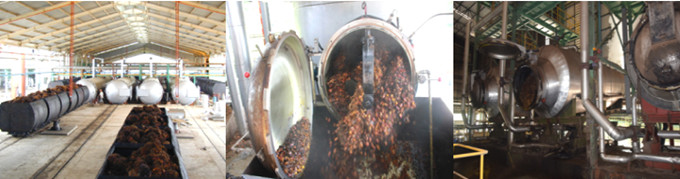

palm oil mill plant
Palm fruit sterilzing machine

3.Palm fruit threshing:
The purpose of threshing in plam oil mill process is to separate the palm fruit from the FFB. The drum type thresher is the usual machine to separate the fruit. The separated oil palm fruit is sent into the pressing section. Empty fruit bunch be ejected to the yard from the other side of the revolving drum, or shipped out from the plant as palm orchards slipcover to recycling use, or burning in the locale as fertilizer for agricultural land.

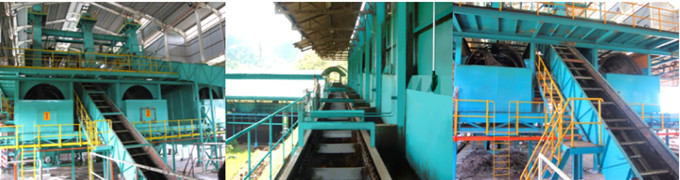

palm fruit threshing machine
Palm fruit threshing machine

4. Palm fruit mashing and pressing:
There is also the steam heater in masher. The purpose of mashing in palm oil mill process is to separate the pulp and nut and crush the palm pulp. At the same time, the steam is used to cook the palm fruit and broke the cell of pulp. Because of cooking, sterilizing, threshing and mashing made the pulp soft and damage pulp cell structure, the palm pulp becomes soft and cell is broken. Then it is sent to continuous screw palm oil press machine. After pressing, oil palm fruit is divided into two parts: the mixture of oil, water and solid impurities, and the press cake (fiber and nut).

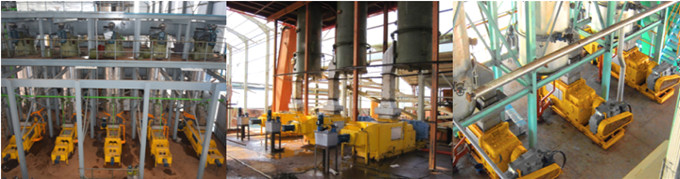

palm oil digesting & pressing machine
Palm oil digesting & pressing machine

5. Palm oil clarifying:
Machine-pressed crude oil first diluted with water washing, through settlement and filtration, the fiber material removed from the oil, and then carry out continuous settlement, the whole divided into two parts in palm oil mill process: oil and sediment. Oil by centrifugal separation and through vacuum drying pumped into the storage tank for storing; oil sediment by filtration and dirt oil separation, oil process second settlement, dirt oil mixture process clarification separation, Skim oil then carry out a second settlement, sewage pumps to sewage treatment pond for dealing with.
palm oil mill
Crude palm oil clarifying machine

6.Palm kernel recovery:
Palm kernel recovery is also importmant for palm oil mill process machinery.Press cake broken by breaking screw conveyor and then transported into the fiber separation air net and fiber polishing roller for fiber separating. The separated fiber material is sent to the boiler room as fuel; the separated palm kernel is transported to kernel warehouse by pneumatic conveying system for temporary storage.

The above are the main sections of palm oil mill process, if the final users plan to produce the refined palm oil, the further processes are required.We can supply palm oil refinery plant for customer.
