Palm oil mill sterilizer

Palm oil mill sterilizer

Palm fruit sterilizer is the main equipment in palm oil mill. The type of sterilizer technology utilised in the palm oil mill greatly affects steam and power demand, and performance of the sterilization process. In general, palm fruit sterilizer can b

Palm fruit sterilizer is the main equipment in palm oil mill. The type of sterilizer technology utilised in the palm oil mill greatly affects steam and power demand, and performance of the sterilization process. In general, palm fruit sterilizer can be diveided into three kinds: Horizontal sterilizer, Vertical sterilizer, Tilting sterilizer.

palm fruit sterilizer

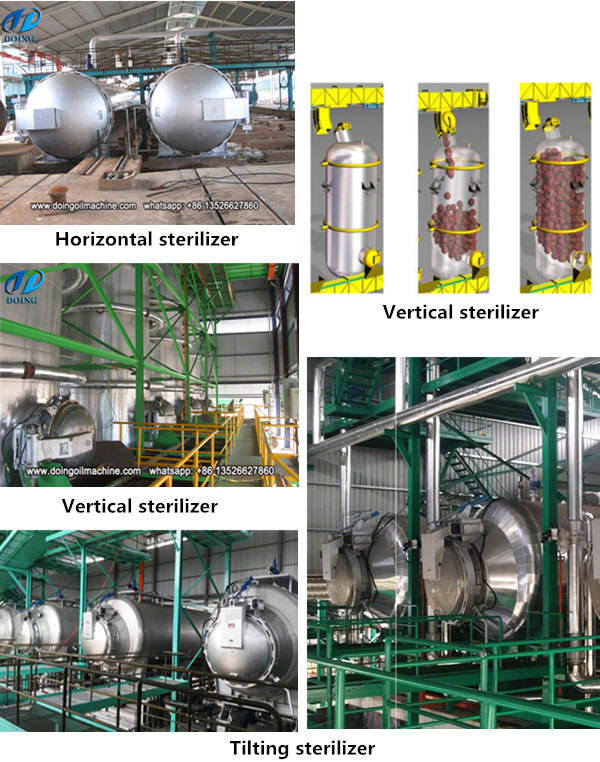

Various kinds of palm fruit sterilizer


After the palm fruit is harvested, it need to be sterilized wthin 48 hours, the purpose of palm fruit sterilization station is to prevent enzymes broken down, avoiding FFA content in oil further increase, at the same time, the temperature will make the fruits soften, palm fruit sterilization station makes it easy for threshing, pretreatment expelling, prepare for the following process, such as digesting & pressing, it can also reduce the damage of kernel.

The following discussion on the different types of sterilizer:
Horizontal Sterilizer

The horizontal sterilizer is the most commonly used sterilizer in palm oil mills. When disposed in a horizontal position, the cylindrical vessel sterilizer has fairly good disposition because the oil palm fresh fruit bunches placed in cages with a low stacking height are more uniformly spread out in this position across the length of the elongated vessel, as opposed to a vertical sterilizer. Thus, when pressurized steam is injected into the interior of the horizontally positioned cylindrical vessel, the steam can reach out to different directions and corners of the contents within the cages thereby helping treatment of the fruit bunches. Due to the low stacking height of the fruit bunches in the cages, condensate drains out freely from the fruit bunch stack facilitating heat penetration. The low stacking height also limits fruit bunch compression that facilitates low oil loss from the fruits during sterilisation.


horizontal sterilizer

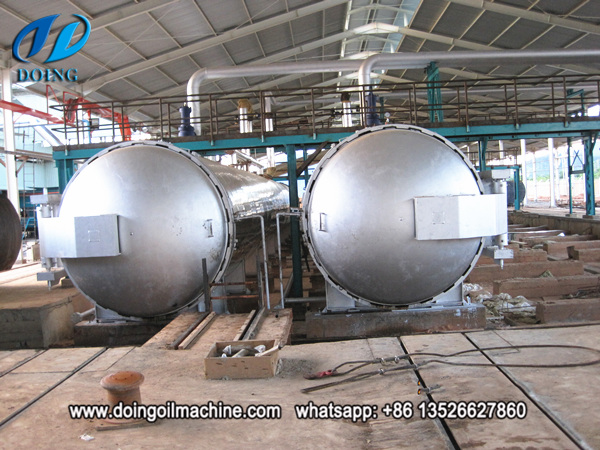

Horizontal sterilizer
Vertical Sterilizer
Vertical sterilizers are available in several variations where fresh fruit bunches are placed directly into a tall vertical vessel without steel cages. The vertical sterilizer is considered for use in palm oil mills where space saving is important. Vertical sterilizers are much cleaner and easier to operate than conventional sterilizers.


vertical sterilizer

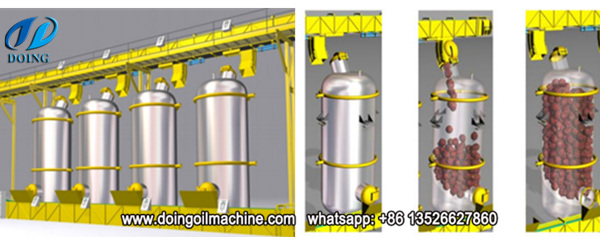

Vertical sterilizer
vertical sterilizer

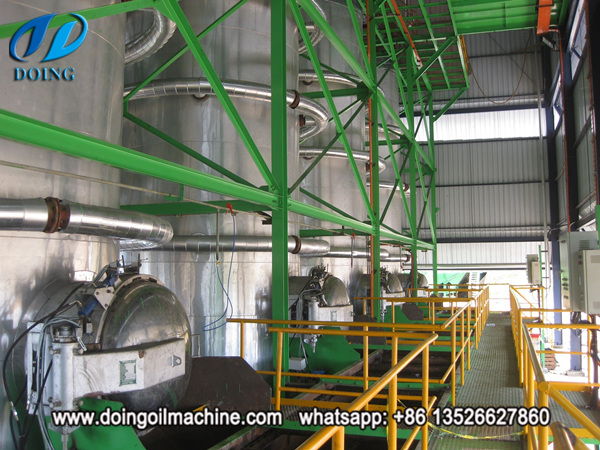

Big capacity vertical sterilizer

Tilting sterilizer
Another type of sterilizer technology, the Tilting sterilizer eliminates much of the machinery associated with conventional sterilizers. The technology is the latest design that offers improved milling efficiency, and reduced labour and maintenance cost.

tilting sterilizer

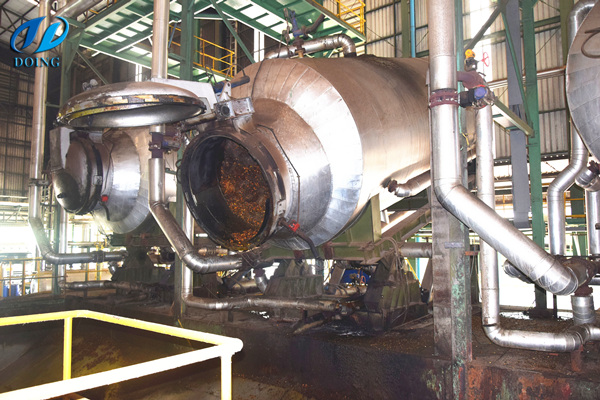

Tilting sterilizer

We are professional manuafacturer of palm oil processing plant, besides palm fruit sterilizer, we also supply other palm oil machines, such as palm fruit thresher, palm oil presser , double screw palm oil press machine,  300-500kg/h palm oil press machine, palm oil refinery plant , palm kernel oil making machine and so on.
