Hydraulic sesame oil press machine

Hydraulic sesame oil press machine

Hydraulic sesame oil press machine is the main equipment to extract sesame oil from sesame seeds.The hydraulic sesame oil press machine is more suitable for sesame, mustard seed, peanut and etc oil seeds, it’s light and convenient.

Hydraulic sesame oil press machine is the main equipment to extract sesame oil from sesame seeds.The hydraulic sesame oil press machine is more suitable for sesame, mustard seed, peanut and etc oil seeds, it’s light and convenient, easy operation.
hydraulic sesame oil press machine

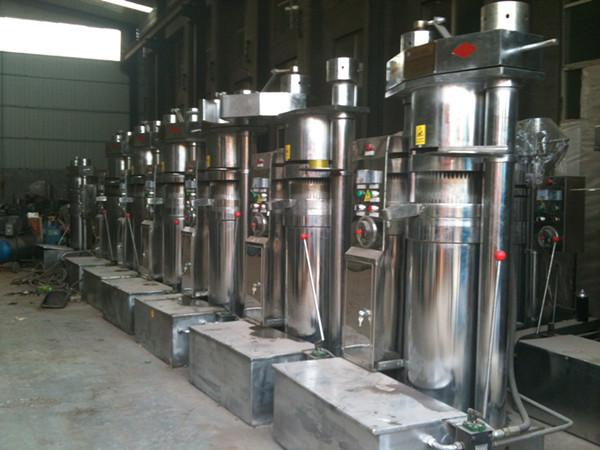

Hydraulic sesame oil press machine in our factory


Description of hydraulic sesame oil press machine:
6YY series hydraulic sesame oil press machine take advanced technology of domestic and overseas, apply Computer Aided Design, use super high pressure hydraulic system, the maximum pressure could reached to 55MPa, press pressure could reached to 340T. The products are reasonably structured, easy operation, safe and reliable, saving energy and protecting environment, low labor intensity. The operator only need simply training. The products are efficient production, high oil extraction ratio, low residual oil ratio in the dry cake, this products is new automatic hydraulic sesame oil press machine.

Machine Advantages of sesame oil press machine:
Inside this professional sesame oil cold press machine, the main hydraulic driving parts are made up of driving worm, turbine, bent axle, high-pressure pump, gear pump, one-way valve, hydraulic cylinder, hydraulic tube, and so on. Combining domestic and overseas advanced technology, we have designed hydraulic triple plunger pump station. It has high, stable pressure and can produce more oil.
hydraulic sesame oil press machine

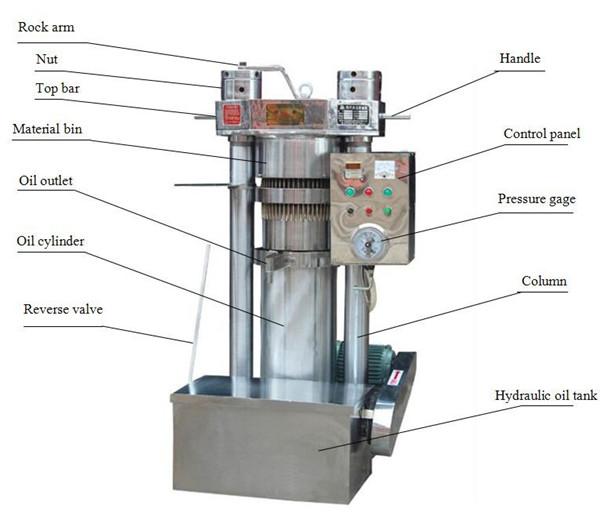

Main structures of hydraulic sesame oil press machine

Features of hydraulic sesame oil press machine:
1: hydraulic sesame oil press machine is the simplest, mechanical operation in the high oil yield.
2: suitable for middle-large size urban citizens rural villages and towns to have their own oil
3: the process is simple, fast, direct come pure scent without false oil.
4: Under the user feed (3,-7 kg/barrel) ; about 8 to 12minutes to work out product oil, oil said rest assured!

Product application of hydraulic sesame oil press machine:

The 6YY series automatic hydraulic oil press, which are new designed and produced by our company,main processing  oil plants like peanuts, soybeans,rapeseeds,tea seeds,walnuts,sunflower seeds,castor seeds,sesame seeds,rice bran,  maize germ, flaxseeds, camellia seeds, olives, avocado, walnut, almonds, copra etc.

Main technical parameters of hydraulic sesame oil press machine:
Model 6YY-180 6YY-230 6YY-280
Capacity (KG/H) 30 50 100
Heating power (KW) 1.0 2.0 2.0
Motor power (KW) 1.1 1.5 2.2
Cake surface pressure (MPA) 41 43.5 47
Dimension (L*W*H MM) 800*800*1100 850*850*1450 1050*1150*1600
Weight (KG) 575 950 19550
