Integrated soybean oil press machine with filter

Integrated soybean oil press machine with filter

The integrated soybean oil press machine with filter has the advantage of higher efficiency, lower consumption.Integrated soybean oil press machine mainly consists of three parts as following: Screw oil press, heating element, vacuum filtering system.

The integrated soybean oil press machine with filter has the advantage of higher efficiency, lower consumption, simple operating, stable function, easy maintenance, high productivity and high oil output. It is widely used in the edible oil factory, oil mill plant, and privates edible oil production workshop. What's more, each integrated soybean oil press machine can be combined together with other soybean oil machines to improve working efficiency and oil yield.

The integrated soybean oil press machine with filtermainly consists of three parts as following: Screw oil press, heating element,vacuum filtering system, Therefore, such integrated oil press machine could supply better quality edible oil for consumption. Also one PLC display has been installed for controlling feeding, oil flowing speed, chamber heating etc. So manpower can be saved and work efficiency can be improved as well.

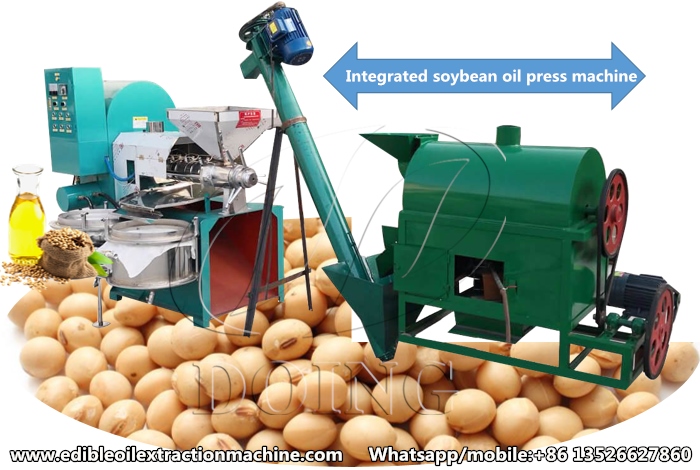

soybean oil press machine Integrated soybean oil press machine can be combined together with other soybean oil machines to improve working efficiency and oil yield

Applicable of Automatic Temperature Controlled Integrated Soybean Oil Press Machine with Filter:

1. More than 30 types of oil seeds, such as rapeseed, cottonseed, soybean, shelled peanut, flax seed, sunflower seed, etc.

2. Uses in edible oil factory, oil mill plant, and privates edible oil production workshop.

3. Performs well both in cold pressing and hot pressing.

4 The lower residue oil in the dry cake.

soybean oil press machine Most of the oilseeds in the picture can be processed by integrated soybean oil press machine

Oil Extraction Rate:



Raw material Output Rate(%) Thickness of Oil Cakes (mm) Oil Content of Dry Cakes (%)
Canola 30-38 1-1.5 ≤7.5-8
Cotton seed 12-14 1-2 ≤6.5-7.5
Soybean 10-16 2-2.5 ≤6.5-7
Peanut seeds 35-45 1-2 ≤7
Sesame 42-47 2-2.5 ≤6.5-7.5

Main Specifications of integrated soybean oil press machine:

Model Input Capacity(kg/h) Power(kw) Speed of screw

worm (r/min)

Weight(kg) Dimension L*W*H

(mm)

DY-68A 40-60 5.5+1.5 137-160 450 1780×700×1320
DY-80A 80-100 5.5+1.5 80-100 700 1480×630×1570

1060×575×620

DY-95A 150-180 7.5+1.5 33-39 950 2100×970×1970

1180×650×580

DY-100A 150-180 7.5+1.5 36-39 1000 2250×890×1820

1230×640×570

DY-105A 160-200 11+1.5 33-39 1200 2260×950×1800

1310×730×580

DY-120A 200-250 15+1.5 32-39 1300 2280×890×1770

1350×700×570

DY-130A 250-300 18.5+1.5 32-36 1500 2350×840×1850

1350×700×570

Note:

1.The technical para. of the table refers to matching the cleaning, peeling, flaking, steaming and roasting accessories machinery, etc, steady operation, and adopts the hot pressing method to achieve the indicators.

2.the actual output may be slight different due to the difference of raw materials in terms of oil varieties, qualities and oil contents, as well as the working conditions.

3.Raw material feeding (kg/h) refers to the capacity after once hot press, and it would reduce to half of it if twice and one third if three times.

4.The integrated soybean oil press machine with filter meets the JB/T9793.1-1999 "agricultural screw oil press technology conditions", and Implement the national regulations of Warranty Services policy of P.R. China.

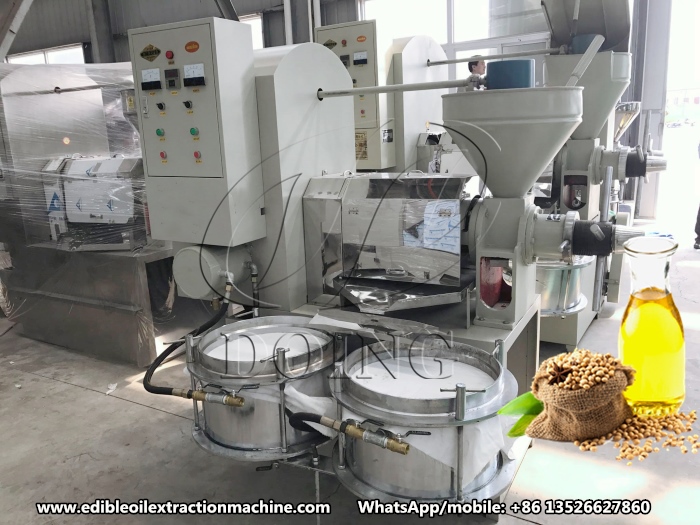

soybean oil press machine Integrated soybean oil press machine in our factory

Henan Doing Machinery is specializing in cooking oil processing machine for many years, we can provide full set soybean oil processing machine. Generally speaking, whatever you are going to install, Henan Doing Company can always meet your needs and can provide you the best solution. If you are interested in starting a soyabean oil processing business, welcome to contact us.
