Integrated sunflower oil press machine with filter

Integrated sunflower oil press machine with filter

Integrated sunflower oil press machine with filter is a kind of superior oil pressing machine nowadays in the market.Integrated sunflower oil press machine is used for processing cooking oil from various oil seeds such as peanuts, soybean,and etc.

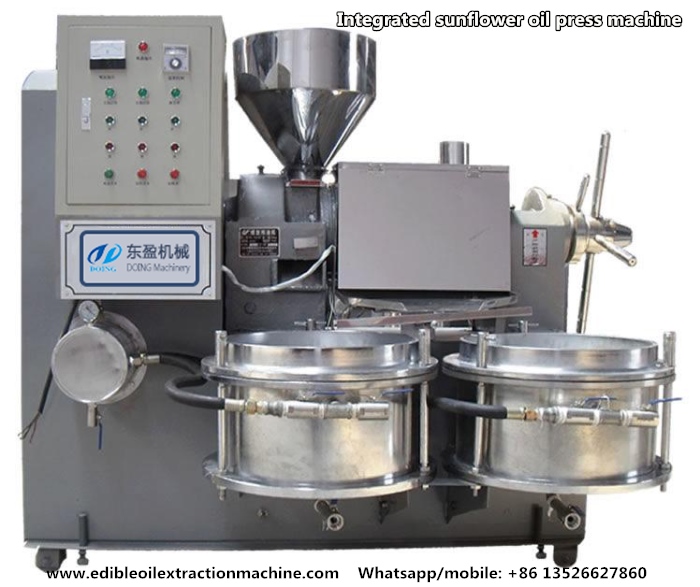

sunflower oil press machine with filter
Integrated sunflower oil press machine with filter


Integrated sunflower oil press machine with filter is a kind of superior oil pressing machine nowadays in the market. Integrated sunflower oil press machine is used for processing cooking oil from various oil bearing materials such as peanuts, soybeans, sunflower seeds, rapeseeds, oil palm, sesame seeds and so on. This integrated screw oil press is suitable for both cold and hot pressing. This integrated screw oil press is suitable for both cold and hot extrusion.

The integrated sunflower oil press machine with filter has the advantage of higher efficiency, lower consumption, simple operating, stable function, easy maintenance, high productivity and high oil output. The integrated sunflower oil press machine with filter mainly consists of three parts as following: Screw oil press, heating element,vacuum filtering system, Therefore, such integrated oil press machine could supply better quality edible oil for consumption. Also one PLC display has been installed for controlling feeding, oil flowing speed, chamber heating etc. So manpower can be saved and work efficiency can be improved as well.

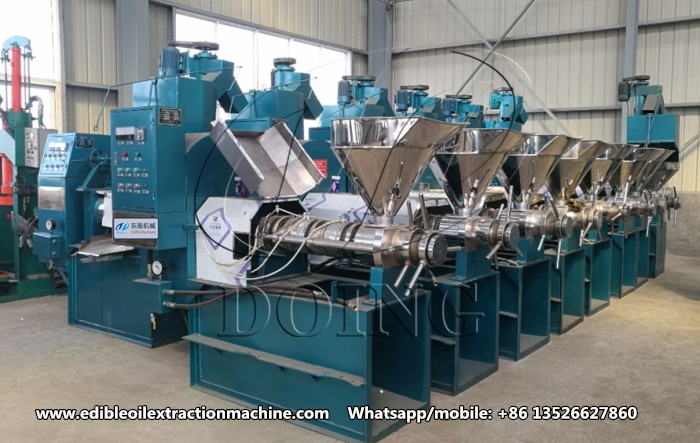

sunflower oil press machine
Sunflower oil press machine with filter
Application of integrated sunflower oil press machine with filter:
The integrated sunflower oil press machine with filter could extract vegetable oil from all kinds of oilseeds, such as soybeans, sunflower,peanuts, cotton seeds, sesame, tea seeds, copra, palm kernel, jatropha seeds, castor seed,maize and olive, etc.
oilseeds
The commen oilseeds

Oil Extraction Rate:


Raw material Output Rate(%)  Thickness of Oil Cakes (mm) Oil Content of Dry Cakes (%)
Canola  30-38 1-1.5 ≤7.5-8
Cotton seed 12-14 1-2 ≤6.5-7.5
Soybean 10-16 2-2.5 ≤6.5-7
Peanut seeds 35-45 1-2 ≤7
Sesame 42-47 2-2.5 ≤6.5-7.5


Main Specifications of integrated sunflower oil press machine:

Model Input Capacity(kg/h) Power(kw) Speed of screw
worm
(r/min)
Weight(kg) Dimension L*W*H
(mm)
DY-68A 40-60 5.5+1.5 137-160 450 1780×700×1320
DY-80A 80-100 5.5+1.5 80-100 700 1480×630×1570
1060×575×620
DY-95A 150-180 7.5+1.5 33-39 950 2100×970×1970
1180×650×580
DY-100A 150-180 7.5+1.5 36-39 1000 2250×890×1820
1230×640×570
DY-105A 160-200 11+1.5 33-39 1200 2260×950×1800
1310×730×580
DY-120A 200-250 15+1.5 32-39 1300 2280×890×1770
1350×700×570
DY-130A 250-300 18.5+1.5 32-36 1500 2350×840×1850
1350×700×570

 soybean oil press machine with filter
Integrated sunflower oil press machine with filter


Note:
1.The technical para. of the table refers to matching the cleaning, peeling, flaking, steaming and roasting accessories machinery, etc, steady operation, and adopts the hot pressing method to achieve the indicators.

2.the actual output may be slight different due to the difference of raw materials in terms of oil varieties, qualities and oil contents, as well as the working conditions.

3.Raw material feeding (kg/h) refers to the capacity after once hot press, and it would reduce to half of it if twice and one third if three times.

4.The machine meets the JB/T9793.1-1999 "agricultural screw oil press technology conditions", and Implement the national regulations of Warranty Services policy of P.R. China.
