Which canola oil making machines should I use to invest in canola oil production?

Which canola oil making machines should I use in canola oil production process? Without knowing the question, we will be confused in how to start canola oil production business. Normally, canola oil production requires a series machines to finish different functions. Common canola oil making machines include pretreatment machines, pressing machines, solvent extraction machines and refining machines. As a manufacturer of canola oil making machines, Henan Glory can introduce canola oil making machines in detail to help you choose the right machines.

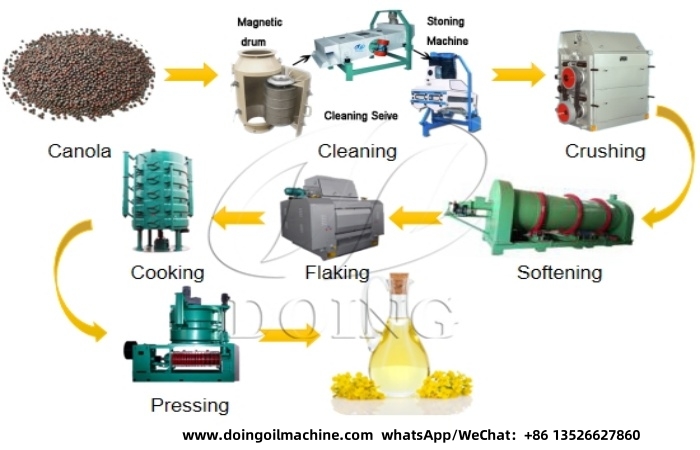

1. Pretreatment machines

Canola pretreatment machines include cleaning machine, softening machine, flaking machine and cooking machine. After pretreatment, the impurities in the canola are removed, and the temperature, humidity and internal structure of the canola are adjusted to a state suitable for pressing, so that canola oil can be extracted from the canola faster. In addition, the removal of impurities also reduces the wear of canola oil making machines, thereby extending the service life of canola oil making machines.

2.Pressing machines

Oil pressing machines use mechanical external force to squeeze the pre-treated canola to squeeze the oil out of the canola. The canola oil produced by the pressing machine does not contain additives and has relatively complete nutritional retention. However, the residual oil rate in the cake after pressing is high. Therefore, when producing canola oil, pre-pressing and leaching are often used to increase the oil yield of canola oil, which requires the use of canola oil solvent extraction machines.

For pressing machines, our company has both stand-alone machine and production line machine. ①The stand-alone machines include single oil expeller, automatic temperature control oil expeller, automatic temperature control vacuum filtration integrated oil expeller, etc, which have the processing capacity of 1.3tpd, 3tpd, 3.5tpd, 4.5tpd, 6.5tpd, 8-10tpd, 9-11tpd, 20tpd. ②The production line machines include small-scale, medium-scale and large-scale pressing production line, the processing capacity of the production line can be 5-1000tpd. Please contact us for details.

Canola oil production line.jpgCanola oil production line

3.Solvent extraction machines

The canola oil solvent extraction machines makes use of the n-hexane to fully contact with the oil, extracting the oil from the canola oil to obtain a mixed oil, and then uses the different boiling points of the solvent and the oil to evaporate the solvent to obtain the extracted canola oil. The extraction machine has a high efficiency for producing canola oil, but the crude oil extracted by the extraction machines contain a small amount of solvent residue. So, the extracted crude oil must be refined before it can be eaten and the leached meal can be used as livestock or animal feed.

For solvent extraction machines, our company can provides solvent extraction solutions with 10-500tpd processing capacity according to different oils and specific needs of customers.

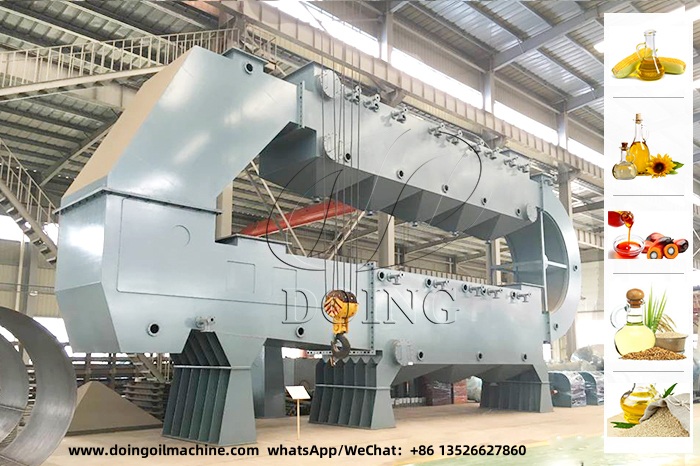

Canola oil solvent extraction machines.jpgCanola oil solvent extraction machines

4.Refining machines

Regardless of pressing or solvent extraction, the final product is crude oil. To obtain canola oil that meets national standards, refining machines are essential for investing in canola oil production. Through the steps of degumming, deacidification, decolorization, deodorization etc. The canola oil refining process is used to remove gums, FFA, pigments and bad odors, aiming at improving the rapeseed oil storage stability, flavor and color. Henan Glory Company provides batch refining with a processing capacity of ≤20tpd, semi-continuous refining with a processing capacity of 5-50tpd, and fully continuous refining with a processing capacity of ≥30tpd, which can match the appropriate canola oil refining machines according to the processing capacity of the customer's canola oil production.

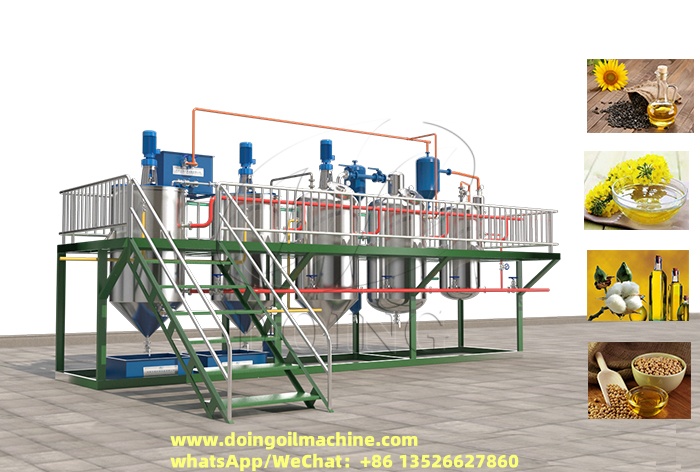

Canola oil refining machines.jpgCanola oil refining machines

The above is the machines needed to invest in canola oil production, but the machines are not static. Henan Glory Company can increase or decrease the canola oil making machines according to the processing capacity and detailed requirements of different customers' canola oil production. If you want to invest in canola oil production, please feel free to consult Henan Glory Company.
