During the whole soybean oil processing process, the soybean oil processing machine plays a very important role. Without the soybena oil processing machine, we couldn't get the final crude soybean oil, refined soybean oil. The whole set soybean oil processing machine is composed of soybean oil pretreatment and pre-pressing machine, soybean oil solvent extraction plant and soybean oil refinery plant.

Henan Doing Company is the best soybean oil processing machine manufacturer and supplier in China, with a wealth of experience in designing and manufacturing various kinds of soybean oil machine. We can provide and supply small scale as well as large scale soybean oil processing machine. The common capacity is of 3TPD, 6TPD, 10TPD, 15TPD, 20TPD, 30TPD,50TPD,60TPD and so on. What’s more, we can customized soybean processing oil machine according to the customer requirements.

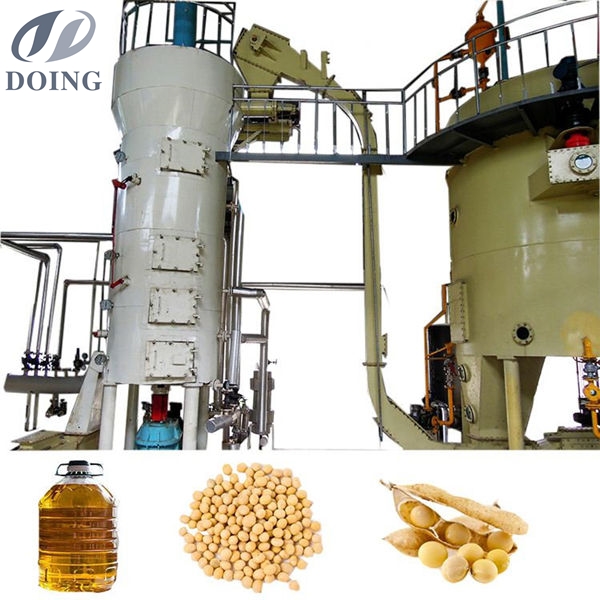

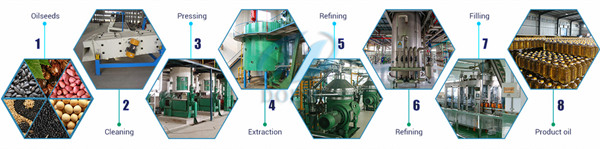

Complete set soybean oil processing plant

Application of soybean oil processing machine:

Soybean oil processing machine designed by our factory is the advanced edible oil processing machinery, characterized by the high oil output rate with good quality, simple design, easy to use and continuous operation. They can use for various raw materials, such as peanut, beans, rape and cottonseeds, sesame, olive, sunflower, coconut, grass seed etc.

The soybean oil processing machine can process the above oilseeds

Next we will introduce the whole process of extracting soybean oil from soybean seeds:

Soybean pretreatment workshop is the basic process of soybean oil processing machine, is mainly to remove impurities in soybean, regulate moisture and temperature of soybean, and break soybean into small particles to change soybean molecular structure, etc, which is good for the following process in solvent extraction workshop. After soybean oil pretreatment & prepressing machine, we can get soybean cake. Soybean cake can go to the following solvent extraction workshop. Soybean cake also can be used for extracting protein.

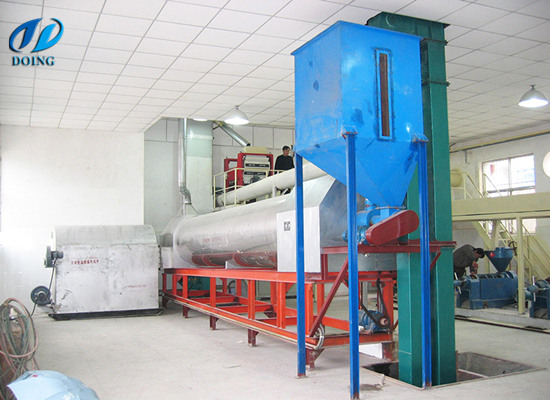

Soybean oil pretreatment and pressing workshop

Soybean oil pretreatment process of soybean oil processing machine:

Soybean→cleaning→stones removal→magnetic selection→crushing→softening→flaking→drying→to solvent extraction

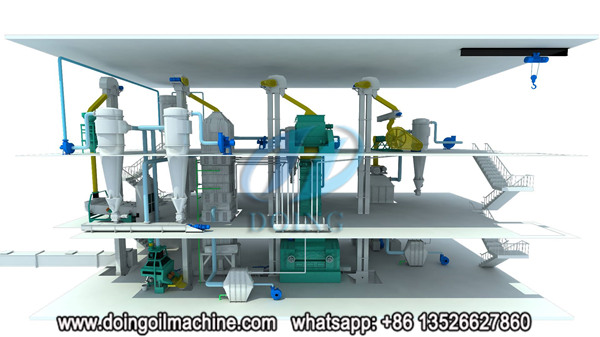

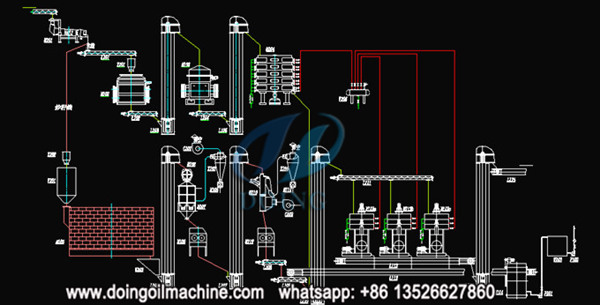

Soybean oil pretreatment and prepressing process diagram

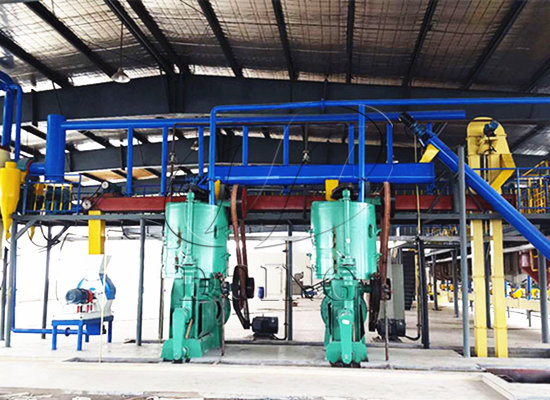

Photos show of soybean oil pretreatment and pre-pressing machine:

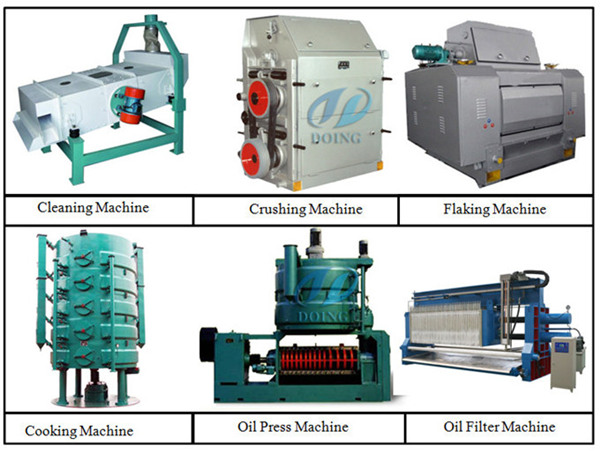

Mian equioment of soybean oil pretreatment and prepressing machine

The next we will introduce the whole process of extracting soybean oil from pressed soybean cake:

The soybean oil solvent extraction plant is part of soybean oil processing machine which is designed to extract oil directly from pressed soybean cake. After soybean oil solvent extraction plant , the residual oil rate in soybean cake is less than 1%.

Daily treatment : 30T, 50T, 80T,100T,150T, 200T, 300T, 450T, 600T, 800T. ..2000T ,As your requirement.

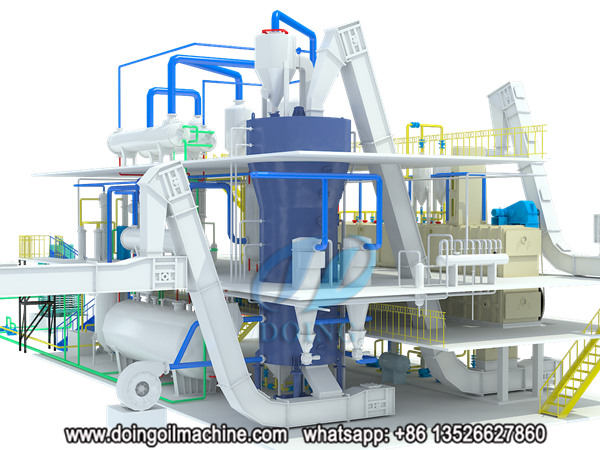

Soybean oil solvent extraction plant 3d animation

Soybean oil solvent extraction process flow diagram:

Pressed cake→Solvent extraction system→D.T.D.C system→Condenser system→Recovery system→Crude soybean oil

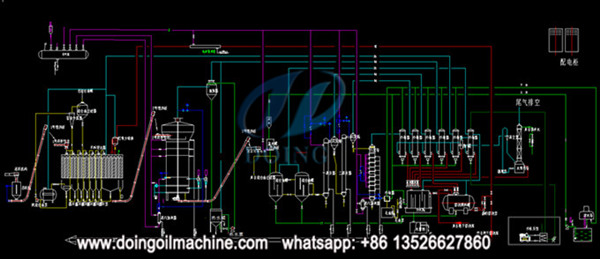

Soybean oil solvent extraction process flow chart

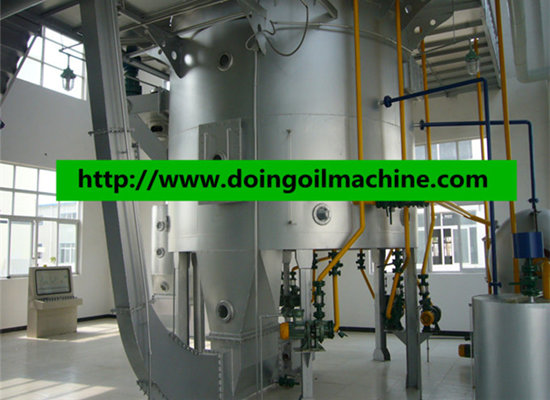

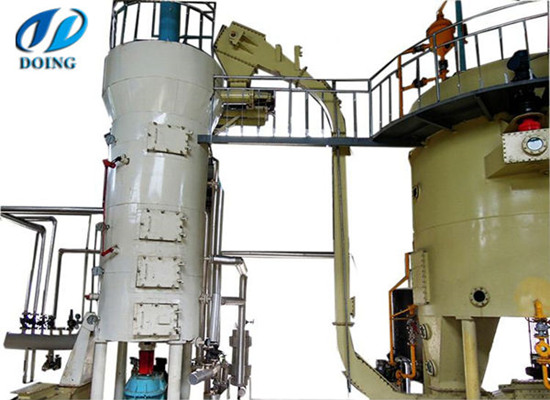

Photos show of soybean oil solvent extraction plant:

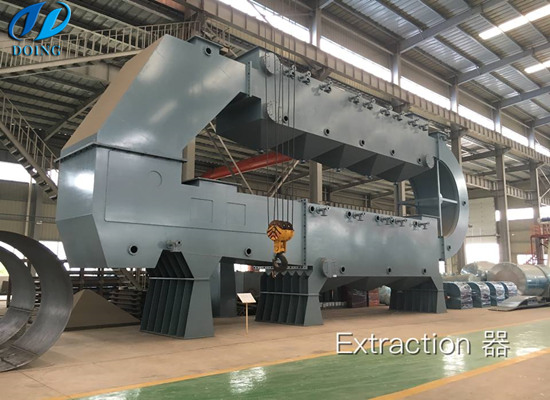

Soybenan oil solvent extraction plant

The finally , we will introduce the whole process of refining of soybean oil:

Soybean oil refinery plant includes a series processing process such as degumming, neutralization, bleaching, deodorization and so on. In general there are two methods of soybean oil refining process, one is physical refining and the other is chemical refining. However, no matter what kinds of refining methods, they are all done with the help of various oil processing equipment and machinery. What’s more, soybean oil refining machine are used to refine almost all kinds of oil extracted from oil seeds like sunflower seeds, peanuts , sesame seeds, and soya bean seeds etc. After refining, we can get refined, bleached, deodorized oil. That is, first-grade soybean oil.

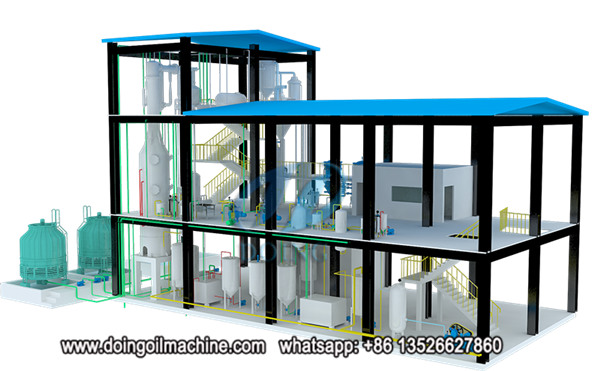

Continuous soybean oil refining machine 3D animation

Soybean oil refinery process flow diagram:

Crude soybean oil→degumming→deacidifaction→decolorization→deodorization→refined soybean oil.

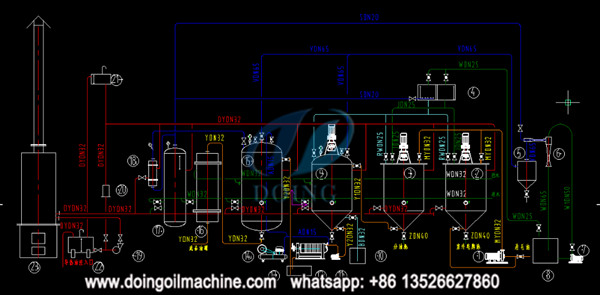

Soybean oil refining process flow chart

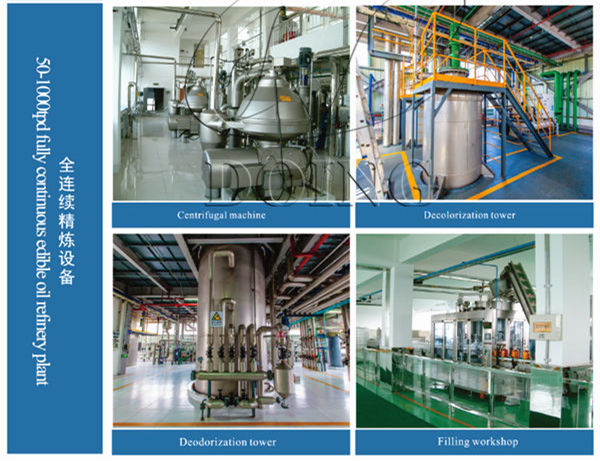

Photos show of soybean oil refining machine:

Continuous soybean oil refining machine

Related equipment of soybean oil machine :

Soybean oil mill plant

Complete set of soybean oil making machine

Small scale soybean oil extraction machine

Fully automatic continuous soybean oil refining machine

Integrated soybean oil press machine with filter

Be here, you can see various types cooking oil processing machine, you can click image or article title to view the detial cooking oil extraction process introduction:

As an expert in cooking oil processing equipment and complete set cooking oil production line, Henan Doing Company is your reliable choice for starting soybean oil processing business. We can offer both mini scale, small scale, medium scale and large industrial scale soybean oil mill plant. We are have built a comprehensive business pattern which includes turnkey vegetable oil processing solutions, equipment manufacturing, plant installation and commissioning, technical training and all around after services. If you are planning for setting up a soybean oil mill plant, don't be hesitate to let us know about your oil making needs!
