1tph free-installation palm oil production line is a pre-assembled equipment specially designed by Henan Glory Company, and this 1tph free-installation design can well simplify the installation process of palm oil production line, save customers' installation time and cost, and speed up the process of putting the palm oil production line into production.The following Henan Glory will explain their differences between the 1tph free-installation and the small scale palm oil production line through the following three aspects.

1. Differences in equipment installation efficiency aspect of palm oil production lines

First, let's compare the differences between the 1tph free-installation and the small scale palm oil production line in terms of equipment installation efficiency. The 1tph free-installation palm oil production line is a type of equipment that is pre-assembled and pre-tested on a steel skid or frame. So 1tph free-installation palm oil production line is designed for easy transportation and installation, as it can be moved as a single unit to the site where it will be used. The entire 1tph free-installation palm oil production line can be divided into three installation platforms, namely, the sterilization section, the threshing and pressing section and the filtration section. Each installation platform can be installed as a single unit directly into a 40HQ container. This 1tph free-installation palm oil production line is typically more compact and space-saving, and it can significantly reduce the time required for palm oil production line installation and commissioning and is more efficient.

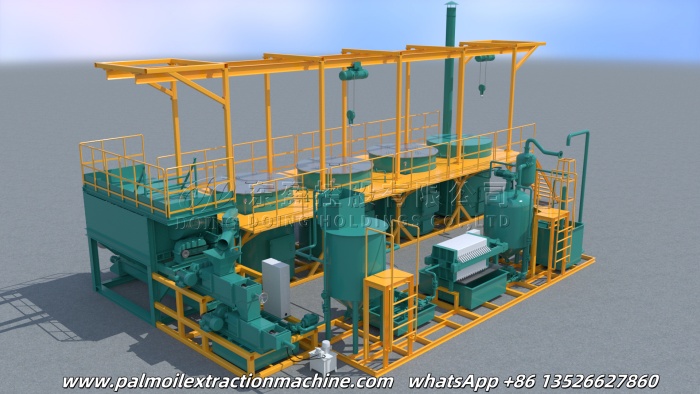

The 1tph free-installation palm oil production line

In contrast, the small scale palm oil production line is usually built on-site and involves a more complex installation process. It may consist of individual components that need to be assembled and connected on location. This small scale palm oil production line is often larger and requires more space, and the palm oil production line installation and commissioning process can be more time-consuming and labor-intensive.

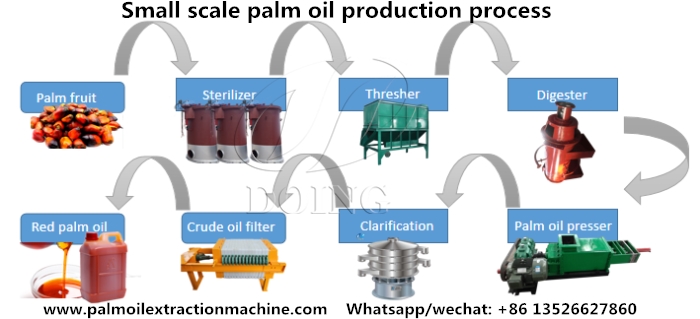

The small scale palm oil production line

2. Differences in the number of equipment required aspect for palm oil production lines

The second point is the change of some of the equipment in the 1tph free-installation palm oil production line. In order to adapt to the height of 40HQ containers for easy shipment. The height of some of the equipment in the 1tph free-installation palm oil production line has been adjusted, most notably the sterilization section and pressing section. In the sterilization section, we increase the number of sterilization tanks and reduce the height of sterilization tanks to ensure the production efficiency of 1tph free-installation palm oil production line. We also add a water tank to provide the heating source for the complete 1tph free-installation palm oil production line. Besides, in the pressing section, the 1tph free-installation palm oil production line uses a modified double-screw palm oil press equipment to replace the vertical digesting tank to digest the palm fruits, which also controls the overall height of the 1tph free-installation palm oil production line. However, small scale palm oil production lines do not have overall height requirements.

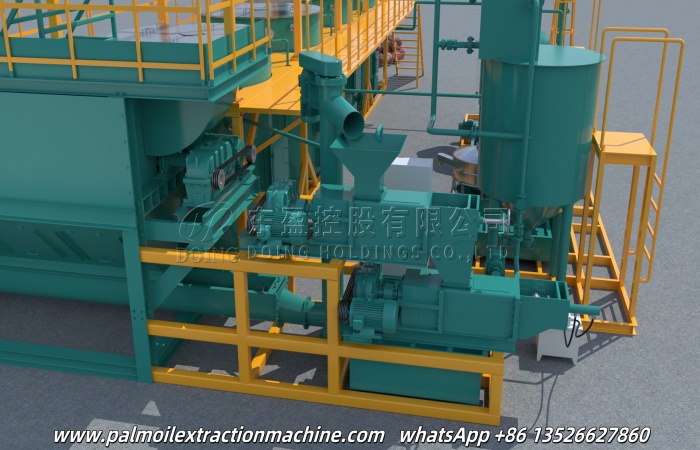

Double-screw palm oil press equipment

3. Differences in the footprint size aspect by palm oil production line

The last point is that the overall palm oil production line footprints are different. The 1tph free-installation palm oil production line is U-shaped in design, with an overall length of about 15 meters, a width of about 12 meters, and a height of about 8 meters, covering a reasonable footprint size. Furthermore, the overall palm oil production line process is very clear, convenient for customers to plan a more reasonable footprint. But small scale palm oil production line site planning is more casual, according to the customer's site to make specific arrangements, at the same time, the need for conveying pipeline will increase, to a certain extent, increase the cost of the customer.

The above are the differences between the 1tph free-installation and the small scale palm oil production lines of Henan Glory Company in terms of equipment installation efficiency, number of equipment required and footprint size aspects. We hope that it can be helpful for you. Please feel free to leave us a message at any time if you still have any questions.
