Mustard seed oil extraction plant delivered to Bangladesh

2018-08-08 / DOING News / Leave a message / Chat online

If your browser can not play the video, you can change the higher version of the browser or download the video to the local broadcast.DOWNLOAD

This is a small scale mustard seed oil extraction plant designed and manufactured for one of our client in Bangladesh. The mustard oil extraction plant includes mustard seeds roaster and mustard oil expeller. The capacity of mustard seeds roaster is 60kg/h. The capacity of mustard oil expeller is 33-55kg/h. The client set up this small mustard oil plant to make mustard oil.

Photos about this project are listed below. Feel free to contact us if need more details of our mustard oil extraction plant, and you are also welcome to tell us your plan and let us help you start your own mustard oil plant.

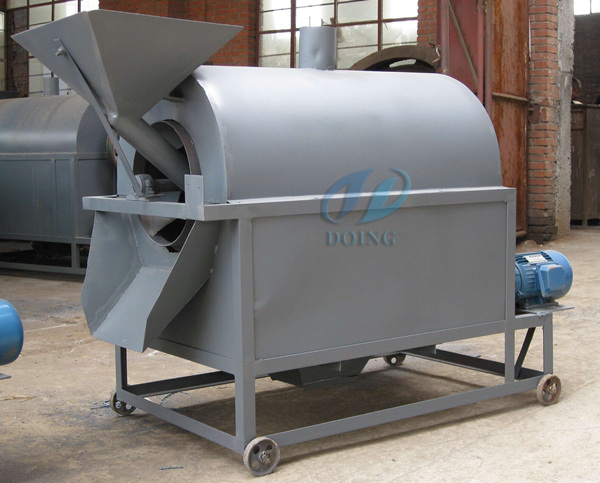

60kg /h mustard seeds roaster

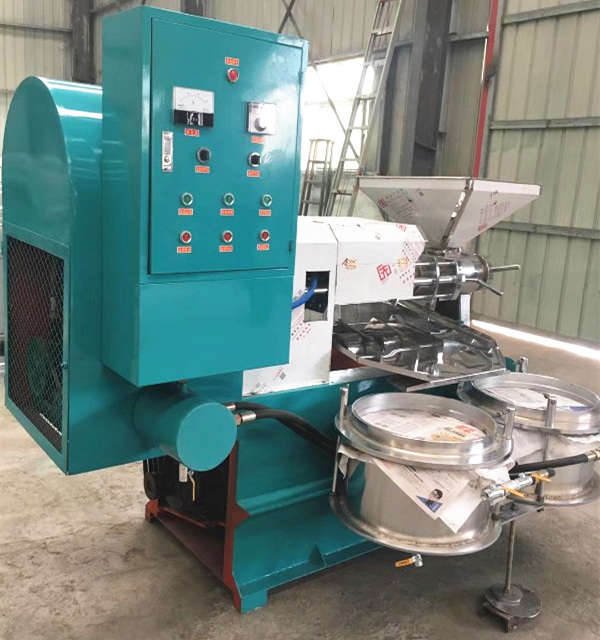

30-55kg/h mustard oil expeller

Specification of mustard oil extraction plant is as follows:

Product name :	Mustard seeds roaster	Product name :	Mustard oil expeller
Model:	DY-60	Model :	DY-30
Screw diameter：	55mm	Electric motor power:	0.55kw
Screw rotate speed：	64r/min	Volume of the roaster:	15kg
Power—Main engine：	2.2kw	Every Roasting time:	15 minutes
Power—Vacuum pump：	0.75kw
Power—heater：	0.9kw
Capacity：	30-55kg/h	Capacity：	60kg/h
Weight：	180kg	Weight:	50kg
Overalls size：	12004801100mm	Overall size:	1150600900mm
Voltage:	220v	Voltage:	220V

We supply different scale mustard oil extraction plant with capacity from 1-1000tpd. We also supply complete set of mustard oil making machine for our customer for choice.
