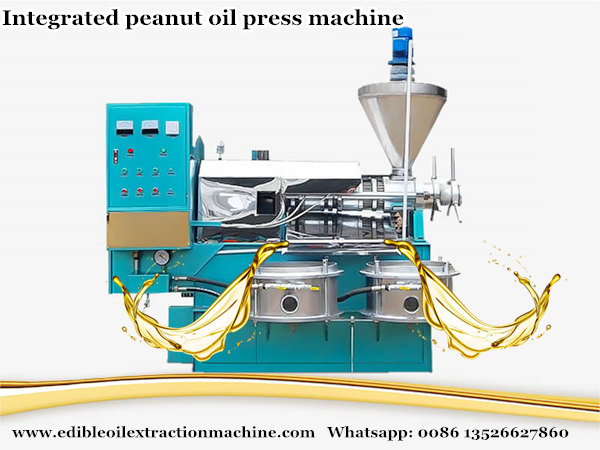

Integrated peanut oil press machine with filter

Integrated peanut oil press machine with filter

The integrated groundnut screw oil press machine has the advantage of higher efficiency, lower consumption.The integrated groundnut oil press mainly consists of three parts as following: Screw oil press, heating element,vacuum filtering system.

The integrated peanut oil press machine has the advantage of higher efficiency, lower consumption, simple operating, stable function, easy maintenance, high productivity and high oil output. The integrated peanut oil press machine mainly consists of three parts as following: Screw oil press, heating element,vacuum filtering system, Therefore, such integrated peanut oil press machine could supply better quality edible oil for consumption. Also one PLC display has been installed for controlling feeding, oil flowing speed, chamber heating etc. So manpower can be saved and work efficiency can be improved as well.

peanut oil press machine Integrated peanut oil press machine designed by Henan Doing Company

Application of integrated peanut oil press machine:

The integrated peanut oil press machine could extract vegetable oil from all kinds of oilseeds, such as soybeans, sunflower,peanuts, cotton seeds, sesame, tea seeds, copra, palm kernel, jatropha seeds, castor seed,maize and olive, etc.

peanut oil press machine Henan Doing Company designed integrated peanut oil press machine can process various kinds of oilseeds

Oil Extraction Rate:

Raw material Output Rate(%) Thickness of Oil Cakes (mm) Oil Content of Dry Cakes (%)
Canola 30-38 1-1.5 ≤7.5-8
Cotton seed 12-14 1-2 ≤6.5-7.5
Soybean 10-16 2-2.5 ≤6.5-7
Peanut seeds 35-45 1-2 ≤7
Sesame 42-47 2-2.5 ≤6.5-7.5

Main Specifications of Integrated peanut oil press machine with filter:

Model Input Capacity(kg/h) Power(kw) Speed of screw

worm(r/min)

Weight(kg) Dimension L*W*H

(mm)

DY-68A 40-60 5.5+1.5 137-160 450 1780×700×1320
DY-80A 80-100 5.5+1.5 80-100 700 1480×630×1570

1060×575×620

DY-95A 150-180 7.5+1.5 33-39 950 2100×970×1970

1180×650×580

DY-100A 150-180 7.5+1.5 36-39 1000 2250×890×1820

1230×640×570

DY-105A 160-200 11+1.5 33-39 1200 2260×950×1800

1310×730×580

DY-120A 200-250 15+1.5 32-39 1300 2280×890×1770

1350×700×570

DY-130A 250-300 18.5+1.5 32-36 1500 2350×840×1850

1350×700×570

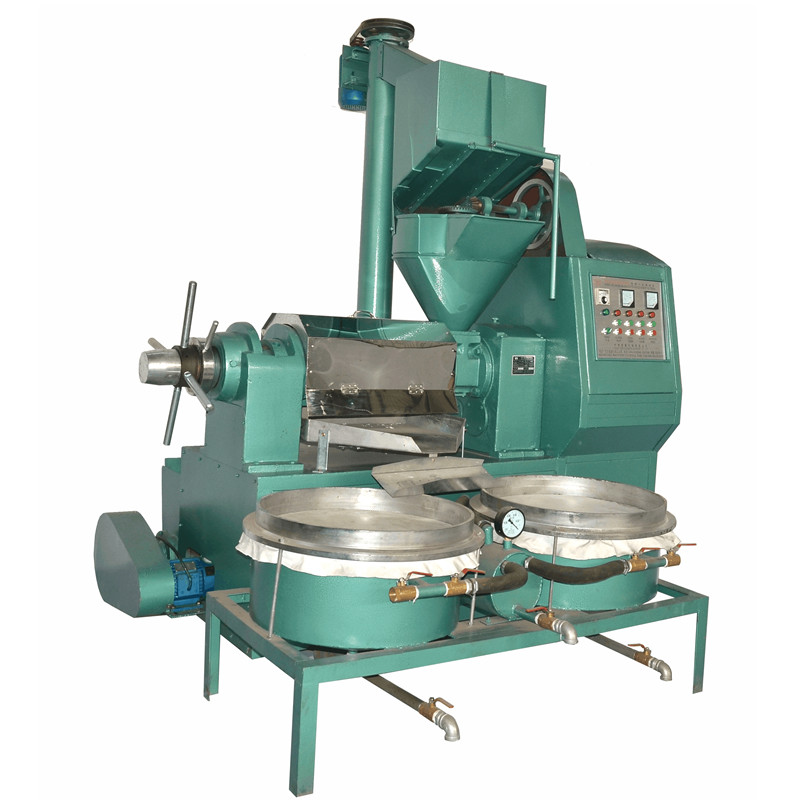

integrated peanut oil press machineIntegrated groundnut screw oil press machine

Note:

1.The technical para. of the table refers to matching the cleaning, peeling, flaking, steaming and roasting accessories machinery, etc, steady operation, and adopts the hot pressing method to achieve the indicators.

2.the actual output may be slight different due to the difference of raw materials in terms of oil varieties, qualities and oil contents, as well as the working conditions.

3.Raw material feeding (kg/h) refers to the capacity after once hot press, and it would reduce to half of it if twice and one third if three times.

4.The integrated peanut oil press machine meets the JB/T9793.1-1999 "agricultural screw oil press technology conditions", and Implement the national regulations of Warranty Services policy of P.R. China.

Do you need one integrated peanut oil press machine with filter machine, like this? If yes, welcome to contact us for more information.
