cooking oil processing machine

Integrated cottonseed oil press machine with filter

Integrated cottonseed oil press machine with filter

Support to visit cooking oil processing machine factory, supply turn-key projects, provide customized services

Contact us:
cottonseed oil press machine

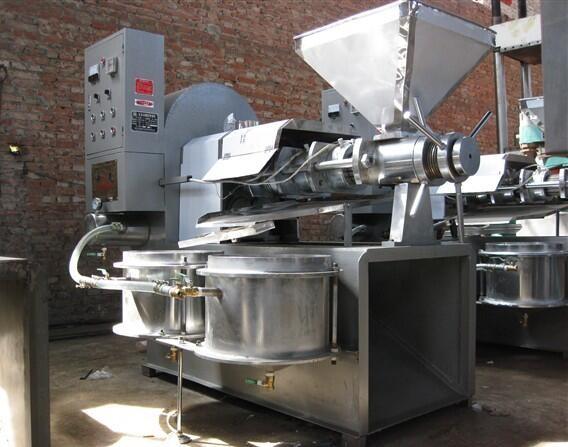

Integrated cottonseed oil press machine

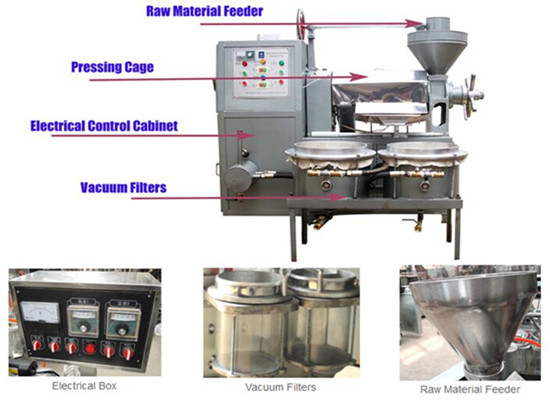

Integrated cottonseed oil press machine with filter is a kind of superior oil pressing machine nowadays in the market. This integrated screw oil press is suitable for both cold and hot pressing. The integrated cottonseed oil press machine with filter mainly consists of three parts as following: Screw oil press, heating element,vacuum filtering system. Therefore, such integrated oil press machine could supply better quality edible oil for consumption. Also one PLC display has been installed for controlling feeding, oil flowing speed, chamber heating etc. So manpower can be saved and work efficiency can be improved as well.

 5 Reasons to Choose Integrated Cottonseed Oil Press Machine With Filter
★   Wide application for various vegetable oil seeds such as peanuts, soybeans, sunflower seeds, sesame seeds, cottonseed, rapeseeds, palm kernels and so on.
★   Covering small space and easier to operate. Electric control cabinet makes the operating safer and easier. More efficient and labor-saving.
★   Continuous working with low noise.
★   High rate of oil yield with purer oil and good condition oil cakes. Vacuum filters in the machine help cleaning oils.
★   Be able to do both cold and hot pressing with automatic temperature rising and oil-cleaning system.

cottonseed oil press machine
Intrgrated cottonseed oil press machine

Application of integrated cottonseed oil press machine with filter:
The integrated cottonseed oil press machine with filter could extract vegetable oil from all kinds of oilseeds, such as soybeans, sunflower,peanuts, cotton seeds, sesame, tea seeds, copra, palm kernel, jatropha seeds, castor seed,maize and olive, etc.
oilseeds

The commen oilseeds

Oil Extraction Rate:

Raw material Output Rate(%)  Thickness of Oil Cakes (mm) Oil Content of Dry Cakes (%)
Canola  30-38 1-1.5 ≤7.5-8
Cotton seed 12-14 1-2 ≤6.5-7.5
Soybean 10-16 2-2.5 ≤6.5-7
Peanut seeds 35-45 1-2 ≤7
Sesame 42-47 2-2.5 ≤6.5-7.5

Main Specifications of integrated cottonseed oil press machine:
Model Input Capacity(kg/h) Power(kw) Speed of screw
worm
(r/min)
Weight(kg) Dimension L*W*H
(mm)
DY-68A 40-60 5.5+1.5 137-160 450 1780×700×1320
DY-80A 80-100 5.5+1.5 80-100 700 1480×630×1570
1060×575×620
DY-95A 150-180 7.5+1.5 33-39 950 2100×970×1970
1180×650×580
DY-100A 150-180 7.5+1.5 36-39 1000 2250×890×1820
1230×640×570
DY-105A 160-200 11+1.5 33-39 1200 2260×950×1800
1310×730×580
DY-120A 200-250 15+1.5 32-39 1300 2280×890×1770
1350×700×570
DY-130A 250-300 18.5+1.5 32-36 1500 2350×840×1850
1350×700×570

Note:
1.The technical para. of the table refers to matching the cleaning, peeling, flaking, steaming and roasting accessories machinery, etc, steady operation, and adopts the hot pressing method to achieve the indicators.

2.the actual output may be slight different due to the difference of raw materials in terms of oil varieties, qualities and oil contents, as well as the working conditions.

3.Raw material feeding (kg/h) refers to the capacity after once hot press, and it would reduce to half of it if twice and one third if three times.

4.The machine meets the JB/T9793.1-1999 "agricultural screw oil press technology conditions", and Implement the national regulations of Warranty Services policy of P.R. China.
