Small scale soybean oil extraction machine

Small scale soybean oil extraction machine

Small scale soybean oil extraction machine is mainly for small capacity soybean oil mill plant.Compared with the big capacity soybena oil mill plant,small scale soybean oil extraction machine needs less equipments.

soybena oil extraction machine
Small scale soybean oil extraction machine


Small scale soybean oil extraction machine is mainly for small capacity soybean oil mill plant.Compared with the big capacity soybena oil mill plant,small scale soybean oil extraction machine needs less equipments.The small scale soybean oil extraction machine includes roasting machine,pressing machine,filtering machine and oil refining machine.

We are processional manufacturer of soybena oil extraction machine. There are mainly three different scales of soybean oil extraction process:
Small scale soybean oil extraction process:5-20TPD
Medium scale soybean oil extraction process:30-100TPD
Big scale soybean oil extraction process:100-3000TPD

Today we mainly in troduce the small scale soybean oil extraction process.

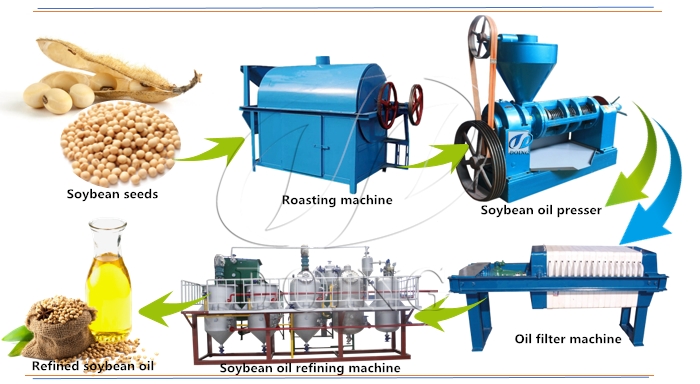

 Small scale soybean oil production process
Small scale soybean oil production process


1.Roasting machine
This machine is to roast the soybean seed first before cooking,so you can get more oil out from next pressing plant

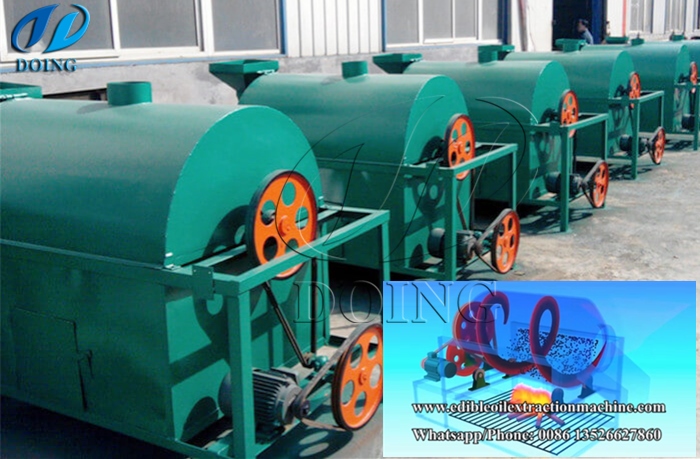

soybean oil extraction machine
Soybean oil roasting machine
2.Pressing machine :
Description:
The single screw oil press machine is an advanced expeller which is widely used in pressing oil from vegetable oil seeds.
The oil separated from oil materials by the pressing power which comes from the change of chamber volume, drive from screw worm, resistance of curve teeth at press rings and extrusion friction between oil material.
Depending on the intended use of the oil, our single screw oil press machine can be operated with either the cold or the hot press technique.

The single screw oil press machine has the advanced design, convenient to operation, high output rate, strong compatibility and high efficiency.  Suitable for medium and small sized oil extruding work shops or professional farmers.Also be used for pre-pressing submerging oil plant

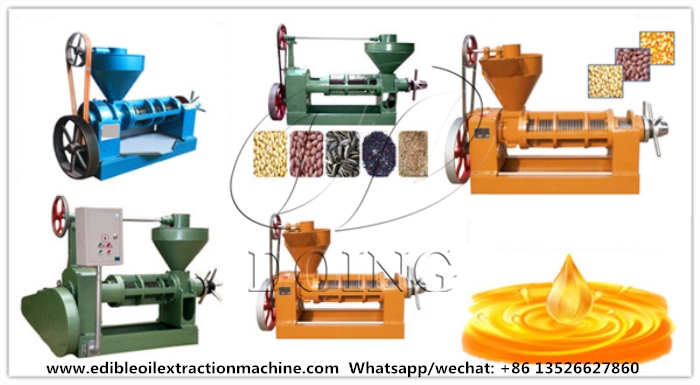

Soybean oil pressing machine
Soybean oil pressing machine
Oil Extraction Rate:
Raw material Output Rate(%)  Thickness of Oil Cakes (mm) Oil Content of Dry Cakes (%)
Soybean 10-16 2-2.5 ≤6.5-7


Main Specifications:

Model Input Capacity(kg/h) Power(kw) Speed of screw
worm
(r/min)
Weight(kg) Dimension L*W*H
(mm)
DY-68 40-60 5.5 137-160 140 1000×540×700
DY-80 80-100 5.5 80-100 330 1320×540×1020

DY-95 150-180 7.5 33-39 480 1600×640×1300
DY-100 150-180 7.5 36-39 480 1600×640×1300
DY--105 160-200 11 33-39 530 1800×640×1320

DY--120 200-250 15 32-39 580 1760×640×1340

DY-130 250-300 32-36 32-36 650 1900×680×1440

DY-165 600-700 22-30 26-30 1220 2230×800×1650


Note:
The technical para. of the table refers to matching the cleaning, peeling, flaking, steaming and roasting accessories machinery, etc, steady operation, and adopts the hot pressing method to achieve the indicators.

the actual output may be slight different due to the difference of raw materials in terms of oil varieties, qualities and oil contents, as well as the working conditions.

Raw material feeding (kg/h) refers to the capacity after once hot press, and it would reduce to half of it if twice and one third if three times.

The machine meets the JB/T9793.1-1999 "agricultural screw oil press technology conditions", and Implement the national regulations of Warranty Services policy of P.R. China.

3.Soybean oil filter machine of soybean oil extraction process:
This filter machine is to remove the impurities from crude soybean oil,so you can get clean soybean oil.Soybean oil filter machine is the major equipment iu soybean oil extraction machine.

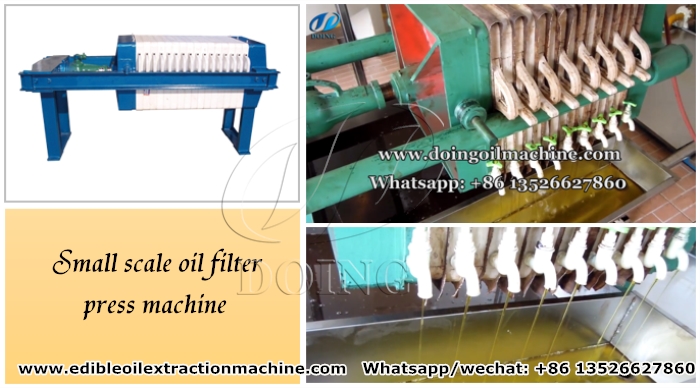

Soybean oil filter machine
Soybean oil filter machine
4.Soybean oil refinery machine:

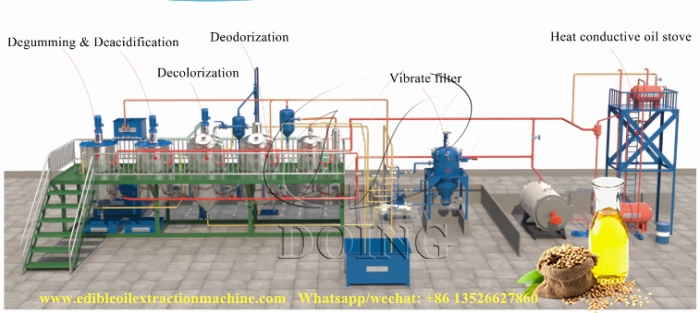

Soybean oil refinery plant is another important equipment in soybean oil extraction machine.The soybean oil refinery plant include four process:degummin g,deacidification,decolorization and deodorization.
Soybean oil refinery machine
Soybean oil refinery machine

After the above processing, we can get refined soybean oil , it can be edible directly. This is small capacity soybean oil extraction machine,we also have large scale soybean oil extraction machine if you need.Only you make order, i will offer you a perfect soybean oil extraction machine .
